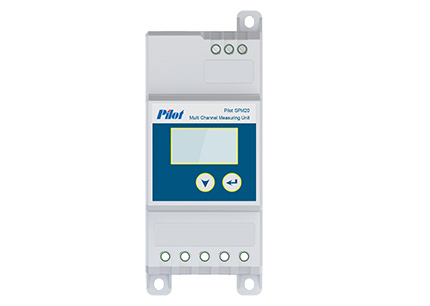

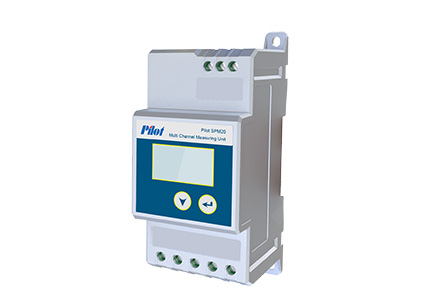

AC Din Rail-mounted Multi-Channel Multi-circuit Energy Meter SPM20 60A 220V for circuit monitoring system

AC Din Rail-mounted Multi-Channel Multi-circuit Energy Meter SPM20 60A 220V for circuit monitoring system

1. Small Size - Can be installed at the closest point, integrate in existing space-constrained installations.

2. Ultra-compact Design - Consists of control unit and current sensors (with RJ12 port, optional solid core or split core )

3. Wide Measurement Range - Max, Support 63A

4. Multi Circuit - Support 30 single phase circuit or 10 three phase circuit AC measuring

5. High Accuracy -Voltage & Current class 0.5 , kWh class 1.0

6. Multi Network Type - 1 phase 2 wires, 3 phase 4 wire

Main Documents

SPM20 Maintenance/User

Compatible Software

Smart PiEMS System

Product Introduction

SPM20 is CE certificated for sub-metering, it suitable to Power distribution cabinet and switch cabinet of the Low-voltage distribution system less than AC 220V, and support to single phase two wires and three-phase four-wires system.

Fully comply the following EMC Standard:
IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-11,IEC62052-11 2003, and CISPR22:2006.

Any metering combinations of: Single-Phase and Three-Phase are possible allowing users to provide flexibility with installations of electrical metering systems.Installation is achieved using Current Transformers (CT).

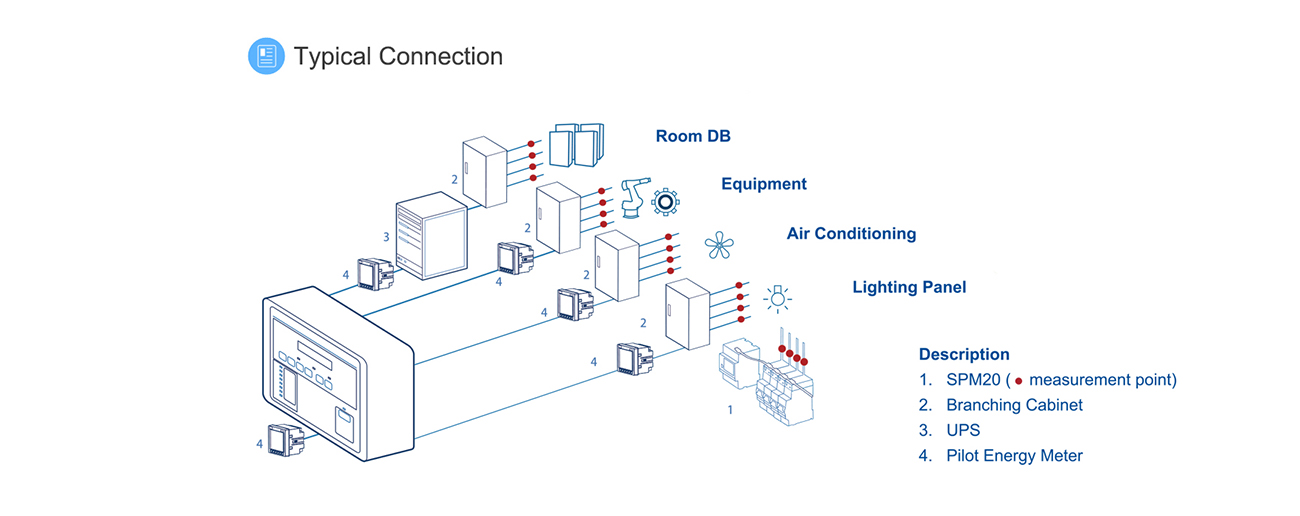

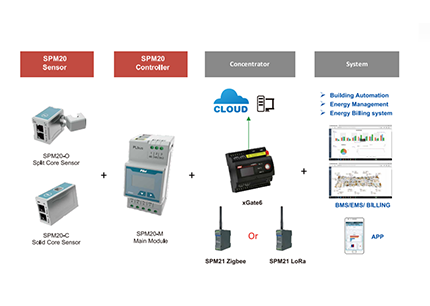

SPM20 CMS is a monitoring system especially to the power terminal by its micro distributed multi-circuit monitoring unit. It consists the measurement module and control module, and these two modules is connected by the PLbus general line which is also researched by Pilot, and the connector plug is by the standard RJ12 which can simplify the installation on site.

SPM20 widely be used in Hotel,Healthcare, Dormitory, Commercial Building, Office, Residential Building, and Reconstruction Project. One monitoring unit can support 30pcs measurement modules at most, and can monitor 10 three-phase circuits or 30 single phase circuits, and have the measurement and metering function to the general data of the three-phase branch (general power, total electric-energy). Its current measurement is in maximum 63A, can satisfy the different application on site.

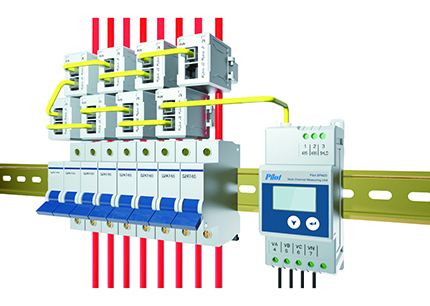

The micro distribution multi-circuit measurement unit can be for multiple installation, and the controller conforms to DIN35 rail install, and backboard screw fixation install; There are the closed in line installation and opening buckle mounting for the option as required. The connection between the measurement unit and controller is by the standard RJ12 port, can make the wiring arrangement easy on site.

SPM20 provides the main function as below

1.Realtime Measurement Voltage, Current, Active power , Reactive power, Apparent Power, Power Factor, Frequency
2.Energy Consumption Active energy，Reactive energy
3.Alarm Function Overload, Under load, Over current, Sensor fault
4.Communication 1 RS485 port, MODBUS-RTU protocol

Specification

SPM20-M:Main Module
Connection Mode		1 phase 2wires,3 phase 4 wires
Power Supply		Self-supply,by A phase
Voltage Input		1 phase 2 wires		220V Range：40%-150%
		3 phase 4wires		3×220/380V Range;40%-1509%
Frequency		45~65Hz
Power Loss		Power supply circuits: 10W
Communication		RS485 serial,support Modbus-RTU Baudrate: 4800,9600,19200bps Address:1~247
SPM20-C: Solid Core Sensor				SPM20-O: Split Core Sensor
Connection Mode		Bus connection (2xRJ12 Port)		Connection Mode	Bus connection (2xRJ12Port)
Rated Current Input		5(63)A		Rated Current Input	10(50)A
Installation		Solid core		Installation	Split Core
Open hole		Φ8 mm		Open hole	Φ9.5 mm
Sampling Rate		28k Hz		Sampling Rate	28k Hz

Parameter			Accuracy	Measuring Rang
Voltage			0.5%	40%~120%
Current	Solid Core Sensor(C)		0.5%	0-63A,1%~120%
	Split Core Sensor(O)		1.0%	0-50A,1%~120%
Power factor			1.0%	-1~1
Active power			1.0%	Single phase:0~±14kW/var/VA Total:0~±42kWvar/VA
Reactive power			2.0%
Apparent power			2.0%
Active energy	Solid Core Sensor(C)		1.0%	0-99,999,999,9 kWh
	Split Core Sensor(O)		2.0%	0~99,999,999.9 kWh
Reactive energy			2.0%	0~99,999,999.9 kVarh
Frequency			0.01	45~65Hz

Power frequency withstand voltage	2000VAC	Environment	Normal operating temperature:-20℃~+55℃ Operating temperature:-20℃~+50℃ Storage temperature:-30℃~+80℃ Humidity:<95%non-condensing
Insulation resistance	≥100MΩ
Impulse withstand voltage	6kV(peak)
IP index	P52(front pane)
Standard (EMC)
Electrostatic discharge immunity test IEC 61000-4-2,Level 4 Radiated radio-frequency electromagnetic field immunity (RFEMS) IEC61000-4-3,Level4 Electrical fast transient test IEC61000-4-4,Level4 Surge immunity test (1,2/50μs~8/20μ) IEC61000-4-5,Level4		Conduction disturbance rejection of radio frequency field induction
		Electromagnetic emission limits Voltage sag and short time interrupt immunity Power frequency withstand voltage		IEC61000-4-6,Level 3 CISPR22:2006,Pass IEC61000-4-11,Pass IEC 62052-11 2003
