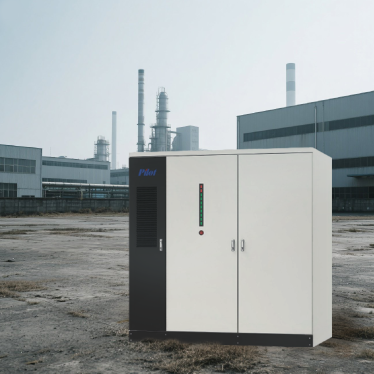

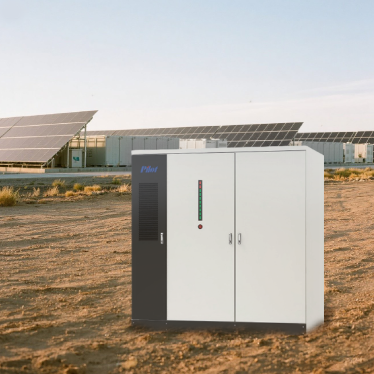

Pilot’s Commercial and Industrial (C&I) All in One Battery Energy Storage System Cabinet PL-EL-250/836
Main Documents
- Save construction cost: In remote areas, off-grid energy supply systems are often more cost-effective than connecting to the grid.
- Ensure reliable power supply: The "wind + solar + diesel" hybrid architecture, combined with energy storage system, ensures power supply continuity and improves power quality.
- On-site consumption of wind and solar energy: Utilize the energy storage system to fully absorb wind and solar resources, maximizing energy savings and emission reductions.
- Flexible deployment and expansion: Highly integrated cabinet design allows for quick deployment, reduces on-site debugging and installation workload, and allows for flexible expansion.
- Applications：Best choose for Oilfield, Mines, Island, Remote Communities, and so on.
Wind-Solar-Diesel-BESS All-in-One Cabinet
- Grid-Connected Operation:Demand response, peak shaving, dynamic capacity expansion, demand management, anti-backflow.
- Off-Grid Operation:Islanding detection, on/off-grid switching, frequency and voltage emergency response, black start.
- Microgrid EMS: Load Forecasting, Generation Forecasting,Economic optimization,Carbon emission management,AGC/AVC,Demand response,Islanding detection,Black-start.
- Industrial Applications Sectors: Commercial building, Healthcare, Manufacturing, Data center, and so on.
Hierarchical Microgrid Control System
- PV: Select PV parking shed, rooftop PV and BIPV according to the location.
- BESS: Choose different capacity according to the site needs.
- Charging Station:Configure charging piles with different powers and types according to the charging requirements.
Solar-BESS-Charging System
Specification
| Parameters/ Model | PL-EL-250/836 |
| Battery Parameter | |
| Cells and Capacity | LiFePO4 - 314Ah |
| Battery module type | 1P208S *4P |
| System capacity range | 836 kWh |
| AC side On-grid parameters | |
| Grid type | 3L/N/PE |
| Rated power | 250kW |
| Rated voltage | AC 400V |
| Grid voltage range | ±15% |
| Freq. range | 50 Hz |
| Rated current | 360A |
| Harmonics | ≤3% (@rated power） |
| AC side Off-grid parameters | |
| Load connection | 3L/N/PE |
| Rated output power | 250kW |
| Freq. range | 50(±0.2)Hz |
| Rated voltage | AC 400V |
| General parameters | |
| Dimensions (W*H*D) | 2800mm*2500mm*1400mm |
| Weight | Around 7.5 tons |
| Ingress protection | IP54 |
| Cooling | Liquid cooling |
| Firefighting system | Aerosol+Perfluorohexanone PACK-level fire protection + water inlet |
| Anti-corrosion grade | C3 |
| Relative humidity | 0-95%（no condensing） |
| Operating temp.* | -20℃~50℃ |
| Operating altitude** | ＜3000m |
| Noise emission | ≤80dB |
| Communication interface | RS485, Ethernet |
| Protocol | Modbus RTU, Modbus TCP/IP |
| Warranty | Battery PACK for 5years，the other components for 2-year warranty |
*The system will be derated when the ambient temperature exceeds 45℃.
** The system will be derated when the altitude is between 2000m and 3000m.
** The system will be derated when the altitude is between 2000m and 3000m.
