AC Branch Circuit Power Meter SPM206 with 54 Circuits for AC Load

AC Energy Meter

AC Branch Circuit Power Meter SPM206 with 54 Circuits for AC Load
AC Branch Circuit Power Meter SPM206 with 54 Circuits for AC Load
AC Branch Circuit Power Meter SPM206 with 54 Circuits for AC Load

AC Branch Circuit Power Meter SPM206 with 54 Circuits for AC Load

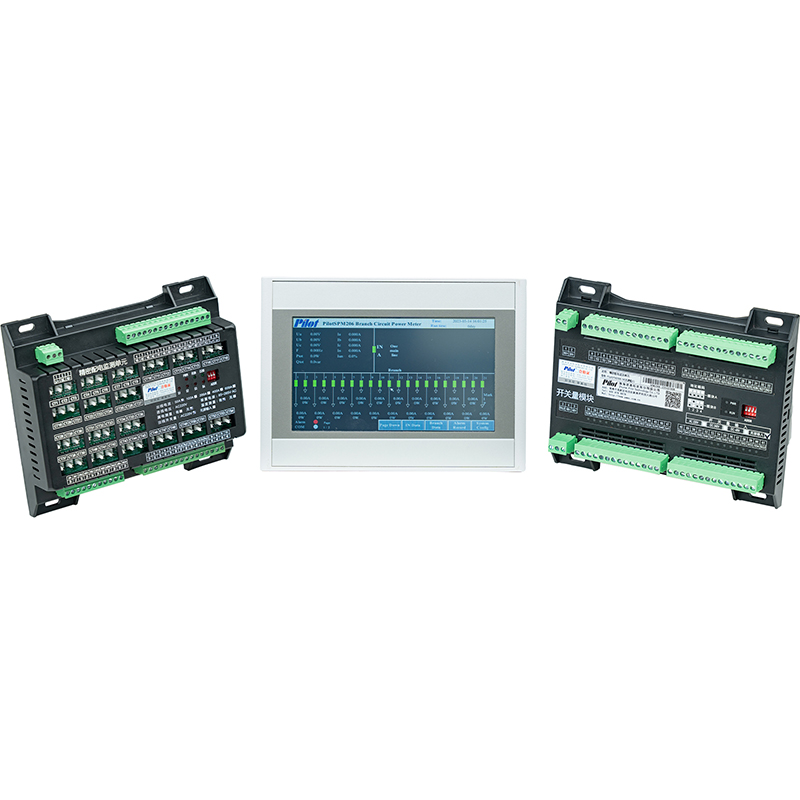

1.Modular design: main module, CT module and DI module are independent, meeting feeder requirements for different circuits.

2.7-inch HMI, high visibility and operability.

3.Each DI module has 54 channels of DI (dry contact) for monitoring branch circuit breaker on-off status.

4.Measure main incoming circuit neutral line current.

5.Measure main incoming circuit leakage current.

6.Measure neutral-earth voltage (Upen)

7.Measure the cabinet temperature

8.Two levels alarm, output alarm signal by internal relay and recording over 5000pcs of alarm information.

9.Measure 2 loops incoming energy and each outgoing circuit energy

10.Measure voltage harmonic and current harmonic

11.Class 0.2 CT, making sure the measurement accuracy.

12.RS485 port, Modbus-RTU protocol

      Main Documents

      PilotSPM206-54 manual PilotSPM206 Maintenance/User
      Contact us

      Compatible Software

      PiEMS System1vwd

      Smart PiEMS System

      Product Introduction

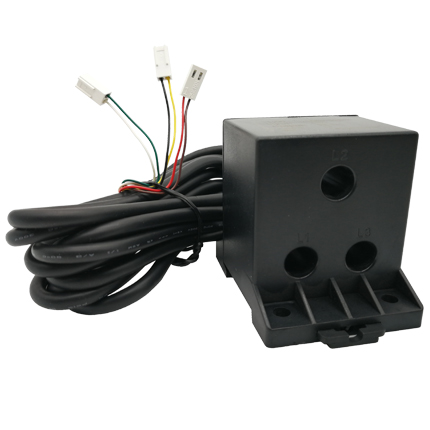

      pCT (1)k6y

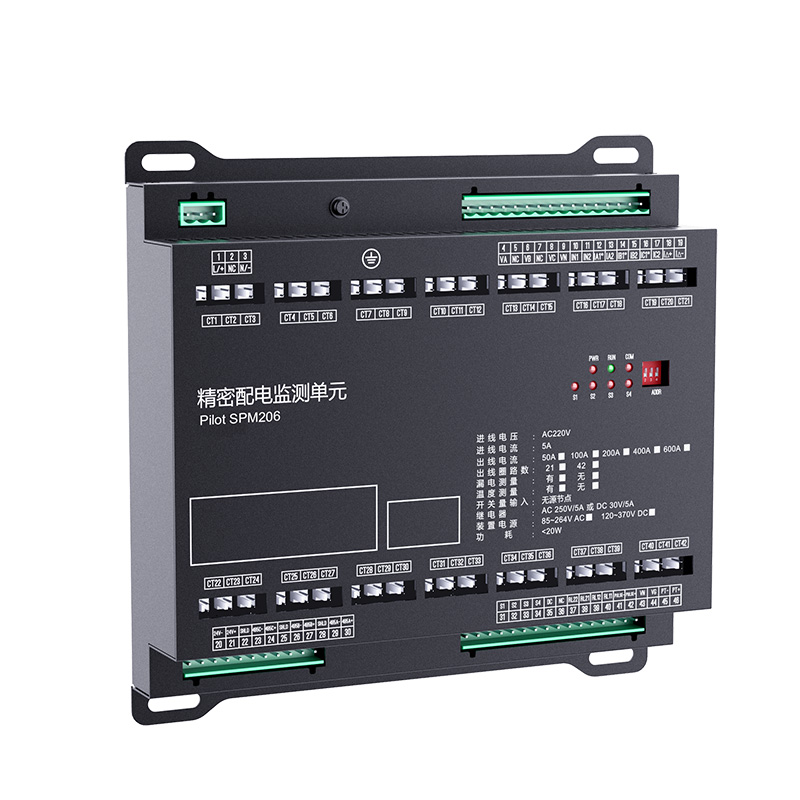

      SPM206 provides the main function as below:

      • 1.Measuring: 1 main circuit + 54 branch circuits
        2.DI/ DO: 4 status input (dry contact), 2 relay outputs, 1 pulse output 3.Settable Pre-Alarm function: Main circuit: Alarm for voltage, current, current unbalance (optional alarm for leakage current/ temperature) Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit)
      pCT (2)yx8
        4.Communication: RS485, support Modbus-RTU protocol
        5.Phase sequence of branch circuit is programmable.
        6.Optional CT input for branch circuit: 50A, 100A, 200A, 400A, 600A 7.Settable wiring for branch circuit: Either single pahse or 3 phase 8.Historical kWh record: kWh yearly consumption of last 10 years, kWh monthly consumption of last 12 months

      Specification

      Main circuit 1 circuit,three phase AC 220V/380V   Demand Demand Interval:15 mins Slip interval:1 mins
      Branch circuit Max.54 circuit per unit
      Power supply AC 220V,range:85~264V   Communication RS485 port Baud rate:2400,4800,9600,19200,38400 (optional)
      MTBF ≥50000h   DI module Main Income Circuit 4Dl:Dry contact DI module for branch circuit:wet contact,220Vac, Range:70~120%,or Dry contact (optional)
      Service life 10 years
      Rated voltage AC 220V Range:10%~120%,Accuracy:0.5%   Relay output   capacity 250Vac/5A or 30Vdd/5A
      Marin circuit rated current 5A via CT,CT primary to 2000A Range:1%~120%,Accuracy:0.5%   IP index Main Module:IP20 HMI (Front board):IP65
      Branch circuit rated current 50A~600A up to the CT Range:1%~120%,Accuracy:0.5%   Insulation   Resistance ≥100MΩ  EC62052-11
      Active power and Active energy Main circuit Accuracy:1% Branch circuit Accuracy:1%   Environment Operation:-10℃~+55 ℃ Storage:-25℃~+70 ℃ Humidity:5%~95%,non-condensing
      Rated frequency 50Hz,Range:45~60Hz,±0.01Hz
