Monitoring Device

Solution Provider of Energy Management

We help our customer dealing with ever-growing challenges of energy management by providing AIoT-based solution.

Every Watt Matters

Pilot smart solutions for metering & monitoring are flexible,while grant a 20% improvement in energy efficiency, a 80% improvement in operation safety, a 25% decline in energy consumption, and a 20% decline in energy cost.
* (*: Data comes from SmartPiEMS Database in Healthcare, Industry and Public Building projects)

24+ Experience in Global Key Projects

Pilot has engaged in extensive cooperation with renowned domestic and international companies across various fields, contributing to major projects such as the Shanghai World Expo, HongKong-Zhuhai-Macao Bridge, China Eye of the Sky, Guangzhou Baiyun Airport, Xiamen Tianma Semiconductor, and etc.

Key Values

Class 0.2s or Class 0.5s accuracy
CE, KEMA certificated
48 invention patents,182 computer software copyrights
Monitoring & Operating online: connect IoT device to the cloud in 10 minutes

Panel type multifunction power meterhb9

Panel type multifunction power meter

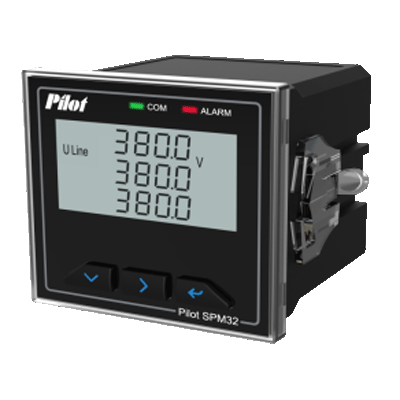

bzcb-(1)opq

SPM32 Multi-function Power Meter

THD, upgrade to 2~63rd harmonic
Class 0.5S Accuracy
Modbus RTU
72 x 72 mm

bzcb-(2)iav

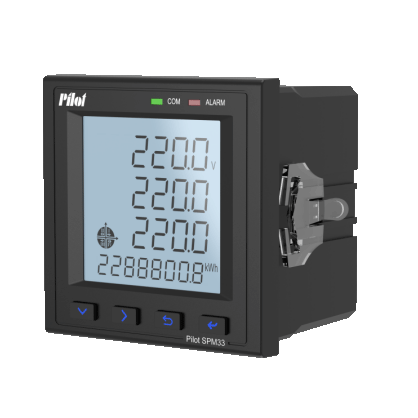

SPM33 Multi-function Power Meter

THD, upgrade to 2~63rd harmonic
Class 0.5S Accuracy
Modbus RTU
96 x 96 mm

bzcb-(3)ryd

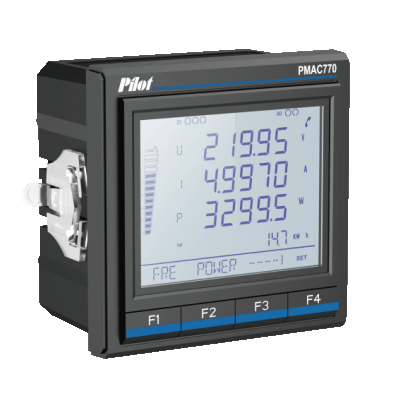

PMAC770 Multi-function Power Meter

Class 0.5s Accuracy
31/63rd harmonics
Modbus & Ethernet
Over-limit Alarm
Data logging
96 x 96 mm

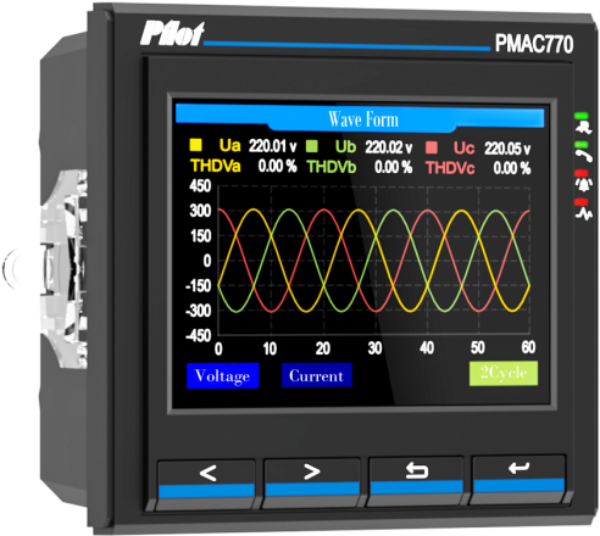

bzcb (4)w1s

PMAC770H Multi-function Power Meter

Class 0.2S Accuracy
Sag/swell monitoring, harmonics measurement, waveform capture
Modbus & Ethernet
Over-limit Alarm
Data logging
96 x 96 mm

Power Quality Analyzerbgq

Power Quality Analyzer

A5438BB8-8D16-4b70-BF02-D8723647BF52jh4

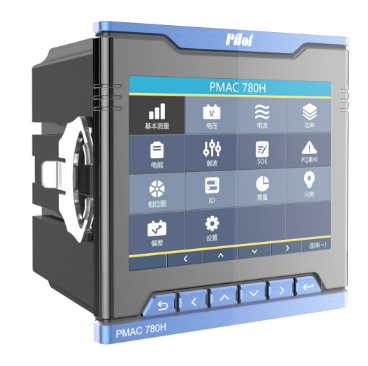

PMAC780H Power Quality Analyzer

LCD colorful interface, resolution: 640*480
Class A Power Quality Measurement, IEC61000-4-30 power quality compliance monitoring 1024 samples/cycle waveform capture, transient capture (20 μs @ 50 Hz), sag/swell monitoring, harmonics measurement (up to 63rd)
Class 0.2S Accuracy
8G Memory, 8 DI, 4 DO
High-speed snapshot recording, 1 ms resolution timestamping
RS485 / Ethernet Port
144 x 144 mm

Din-rail type AC energy meterkwc

Din-rail type AC energy meter

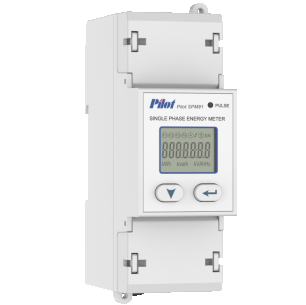

bzcb-(6)a6u

SPM91 Single Phase Energy Meter

Class 0.5S Accuracy
Din-rail, 2P
Display V, A, W, kWh…
Modbus/DLT645-07 protocol

bzcb-(7)2j1

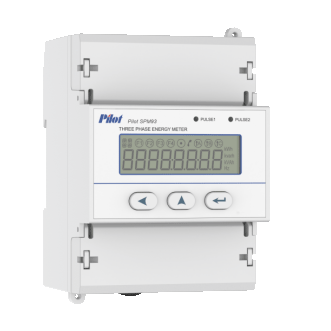

SPM93 Three Phase Energy Meter

Class 0.5S Accuracy
Din-rail, 4P
Display V, A, W, kWh…
Modbus/DLT645-07 protocol
Multi-tariff
Historical energy data

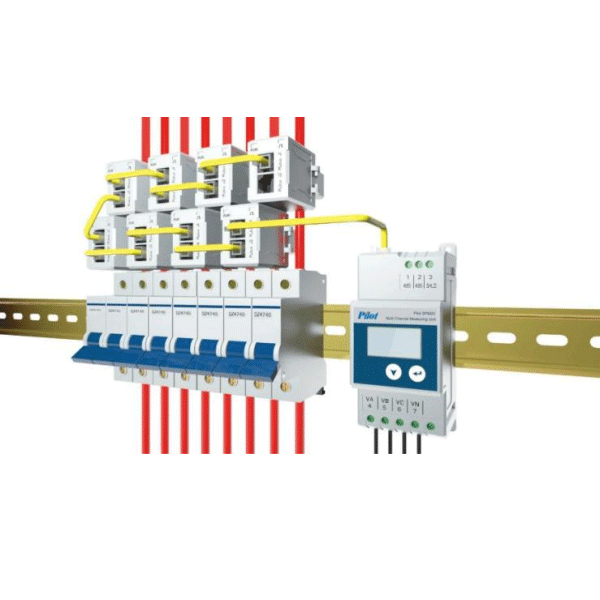

bzcb-(8)3c7

SPM20 Multi-Channel Energy Meter

30 single phase or 10 three phase circuits
Max current 63A
Compact size, easy wiring
Voltage&Current class 0.5, kWh class 1.0
1 phase 2 wires, 3 phase 4 wires

65b0c74ra0

PMAC211 Multi-Channel Energy Meter

12 circuits RMS
Display for U, I, P, Q, S, kWh…
CT primary up to 600A
RS485 / Modbus

Din-rail type AC energy meterx7w

Din-rail type DC energy meter

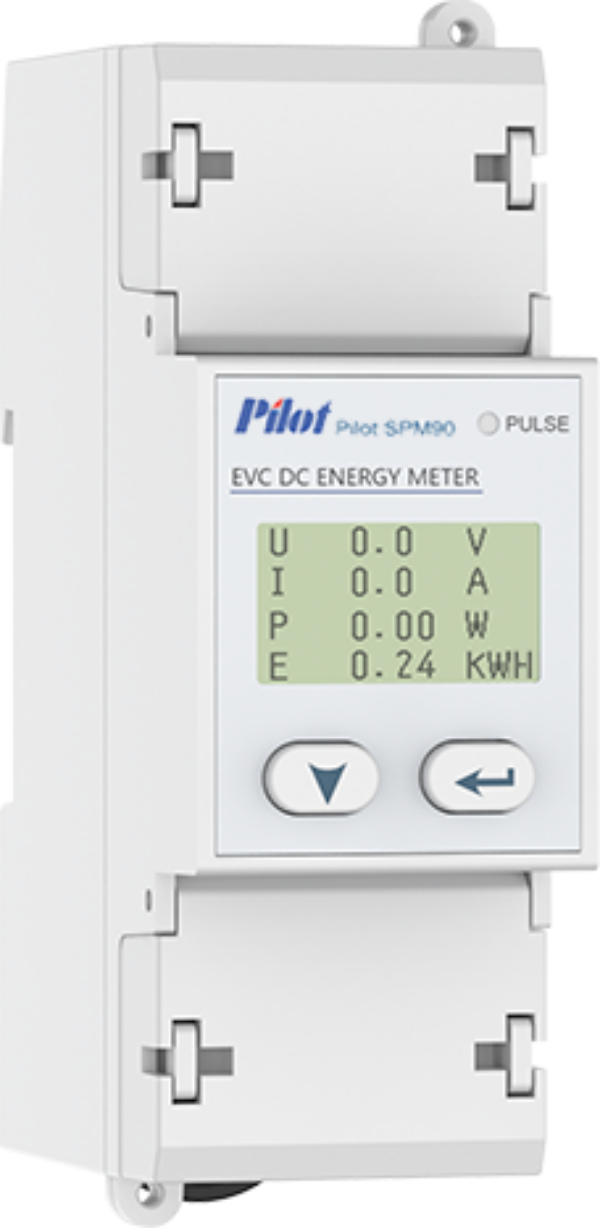

bzcb (10)uiu

SPM90 DC Energy Meter

Class 0.5S Accuracy
Modbus protocol
Suit for BTS, PV, EV charging station

bzcb-(11)pxc

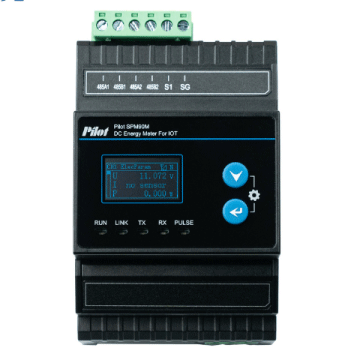

SPM90M 4-circuit Energy Meter

1 to 4 circuits
Up to 1000V DC, 2000A
Dual-direction data
Multi-tariff energy
Dual RS485, Modbus RTU
4G, MQTT, HTTP
Suit for BTS, PV, EV charging station

bzcb (12)d6d

SPM20D 12-circuit Energy Meter

1 to 12 circuits
Max current 63A
Compact size, easy wiring Voltage & Current class 0.5, kWh class 1.0 -48VDC Power Supply

Branch Circuit Power Meter7z5

Branch Circuit Power Meter

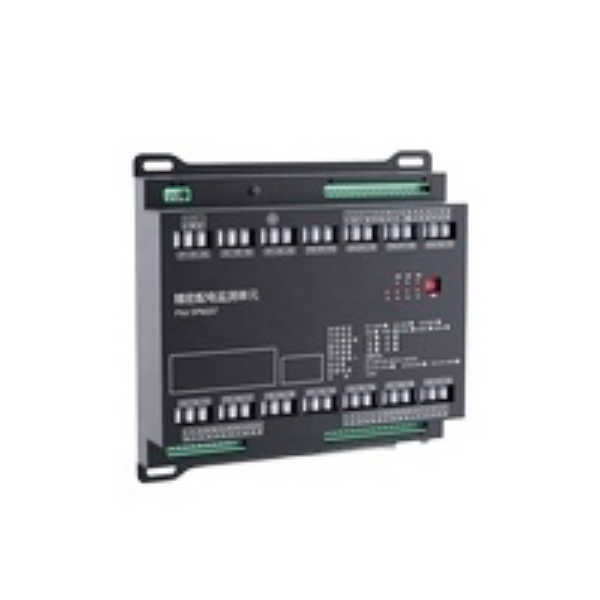

bzcb (13)p8v

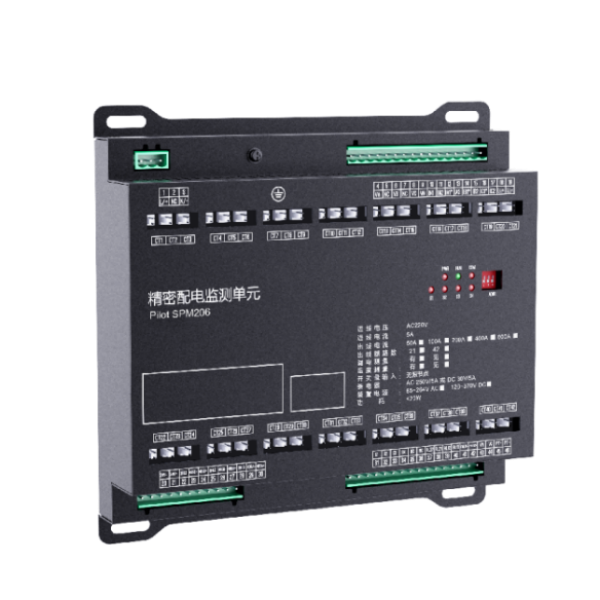

AC Branch Circuit Power Meter SPM206

1 main + 54 AC branch circuits
HMI for display (4 x 54 circuits)
High accuracy Class 1
Modbus protocol
Breaker status monitor and alarm
Pre-alarm for volts, amps, unbalance
Temperature & leakage

bzcb (14)7di

DC Branch Circuit Power Meter SPM207

1 main + 54 DC branch circuits
HMI for display (2 x 54circuits)
High accuracy Class 1
Modbus protocol
Breaker status monitor and alarm
Pre-alarm for volts, amps, unbalance
Outgoing circuit support up to 1600A

IoT Wireless Power Meter196

IoT Wireless Power Meter

bzcb (17)i6o

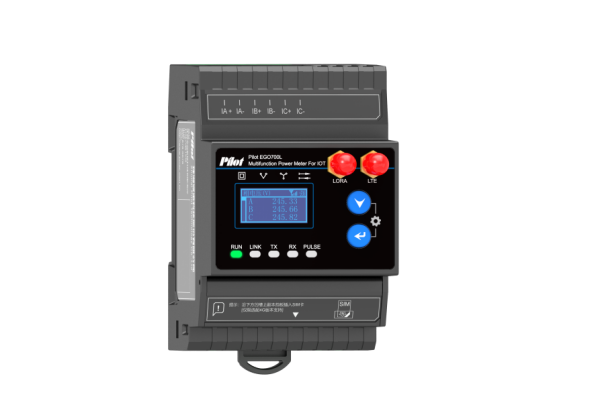

EGO700L IoT Multifunction Power Meter

Metering & Measuring
Power Quality
Over-limit alarm
Demand Calculation
Data Logging & Storage Function with build in SQL
RS485/ LAN/ 4G (LTE) optional
Modbus RTU/ TCP or MQTT protocol.

IoT Smart Gatewayziy

IoT Smart Gateway

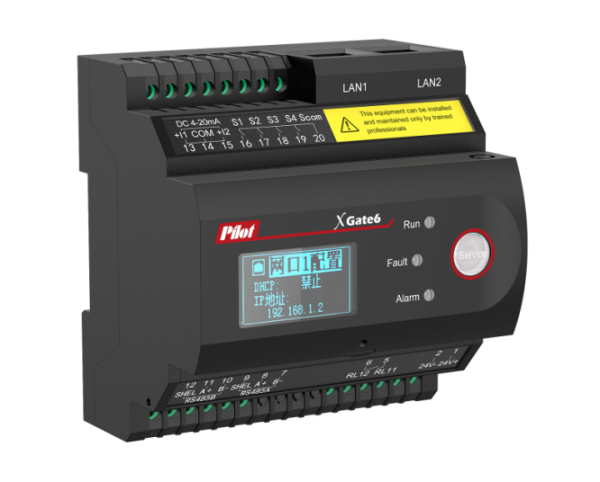

bzcb (18)8h9

Smart Gateway XGate6

DI,DO,AI,RS485,RJ45, Ethernet, GPRS
Online visual web with interface
Data Collect Function for Max. 128 meter
Data Logging & Storage Function with build in SQL
Data Transmit , support HTTP(s), with XML, JSON forwarding format
LTE for remote data reading (4G)
Multiple alarm setting
Build-in RTC, for timing synchronization

bzcb (19)fqp

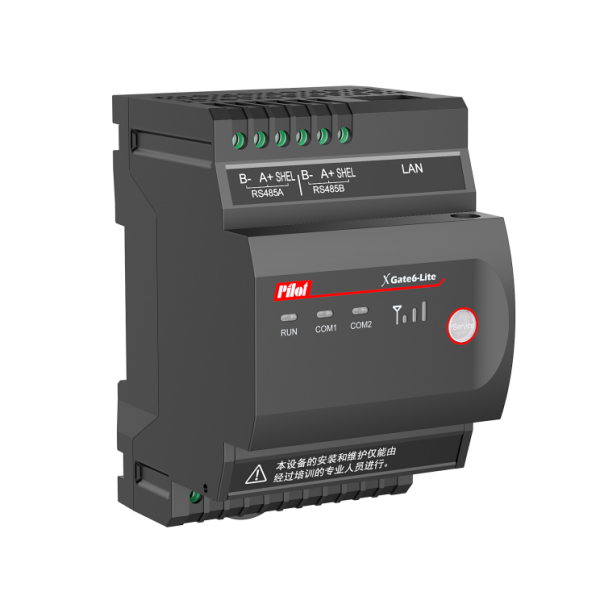

SSmart Gateway XGate6-Lite

RS485, Ethernet, 4G
Data Collect Function for Max. 64 meter
Data Logging & Storage Function with build in SQL
Data Transmit , support HTTP(s), with XML,JSON forwarding format
LTE for remote data reading (4G)
Multiple alarm setting
Build-in RTC, for timing synchronization

Motor Protection and Control Devicesfut

Motor Protection and Control Devices

bzcb (20)r54

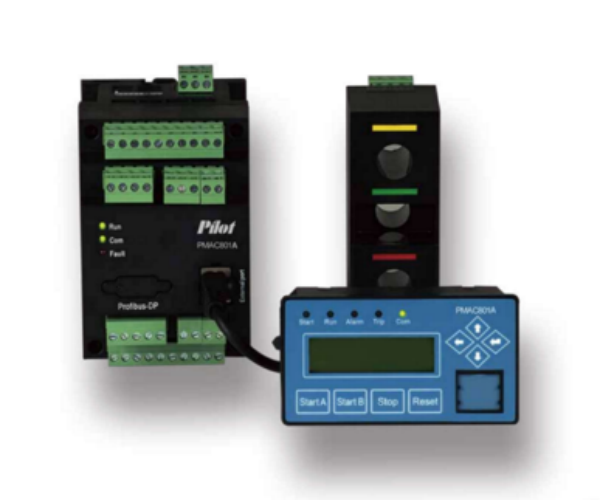

PMAC801A Motor Protection Controller

Suit for motor 380V or 660V
Integrated measure, protect and control
Din-rail install
Modbus RTU or Profibus

bzcb (21)b4d

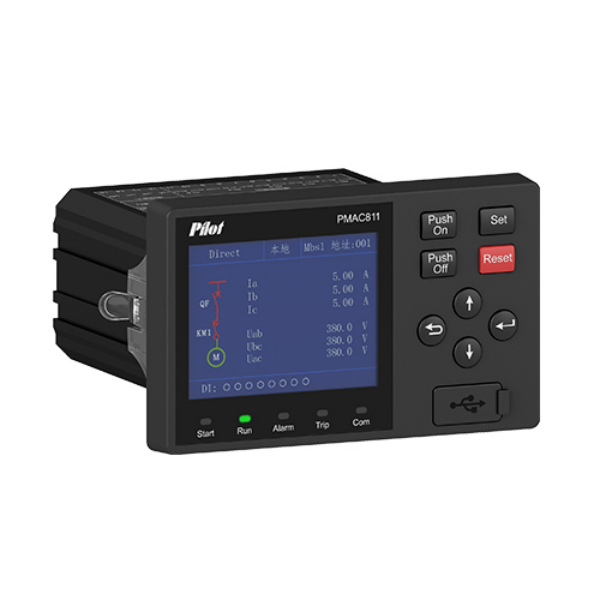

PMAC811 Motor Protection Controller

Suit for motor 380V, compact size
Integrated measure, protect and control
Panel mounting
Modbus RTU
