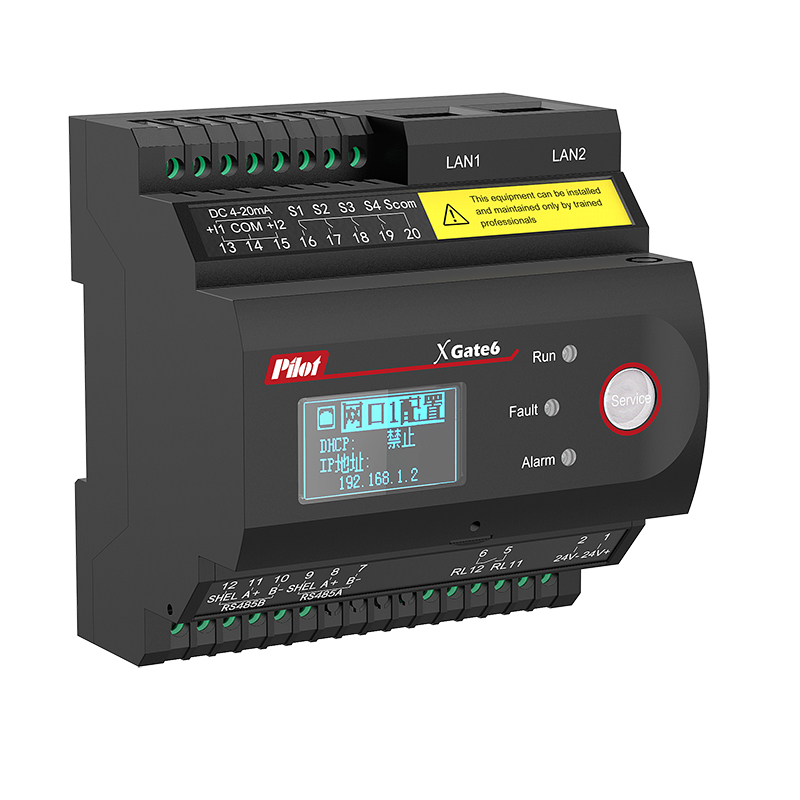

Din Rail-Mounted IoT Smart Gateway XGate6 with 2 Ethernet port

Smart Gateway

Din Rail-Mounted IoT Smart Gateway XGate6 with 2 Ethernet port
Din Rail-Mounted IoT Smart Gateway XGate6 with 2 Ethernet port

Din Rail-Mounted IoT Smart Gateway XGate6 with 2 Ethernet port

1. Online Visual Web with User-friendly Interface



2. Powerful Data Collecting & Forwarding Function

Automation collection and multi transmit mode, support Modbus TCP, JSON and XML, can connect to various cloud software and system


3. Effective and Reliable Data Storage and Management

Includes SQL integration, bidirectional communication, packet validation, and the ability to resume transmitting JSON and XML packets from the last breakpoint.


4. Convenient Batch Configuration, Debugging 8 Update

Sufficient to enable distributed deployment and Ethernet management in IoT systems, especially large systems with cloud management.

      Main Documents

      XGate6 Maintenance/User
      Contact us

      Compatible Software

      PiEMS System1vwd

      Smart PiEMS System

      Product Introduction

      Xgate6-ygwr
      • XGate6 acts as a gateway, facilitating the connection of wired and wireless smart IoT devices with edge control software or cloud applications. It is compatible with various Modbus RS485 and Modbus TCP devices on the market, including electricity meters and protection devices.
      • XGate6 smart gateway is widely used to collect and analyze data from various smart devices to achieve automated management and maintenance. It monitors the real-time operating status of each piece of equipment and alerts on any usage-related issues, significantly reducing labor, material and maintenance expenses.
      XGate6-rtycof

        XGate6 provides the main functions as below:

        1.Data Collect Function:
         .Support Modbus_RTU, Modbus_TCP device
         .Max. 40,000 data points, per device aver 200points
         .Max.4 RS485 parts, each port support 60 slave devices
        .2A,4DI,1DI Port as optional

         2.Data Transmit Function
          .2 Ethernet ports, 1 GPRS for data transmit
         .Support Modbus_TCP protocol
         .SMS alarm notice
        .Support HTTP(s) XML and JSON forwarding format
      20160514103545_42703cwc
        3.Alarm Function
        .Multiple alarm setting for each device
        .Real-time alarm data transmit

        4.Embedded Web Server
         .Embedded HTTP web for configuration
        .Provide Real-time data view, Cloud service Logs
        .Support remote configuration and debugging .Support remote config file update

        5.Data Logging & Storage
         .Build-in SQL data base,
         .Historical data & alarm records storage
        .Standard 8GB TF card (Max Support 32 GB)

        6.Other Functions
         .Online system update, Authority management
         .Build-in clock, NTP for timing synchronization

      Specification

      Item

      Parameter

      Description
      COM Port Port No. 2 Ports/4 Ports (Optional )
      Port Type RS485(Support Modbus_RTU,DLT645 and other customizable protocol
      Baud rate 1200bps~115200bps(Optional)
      Data Transmit Mode Master Made
      Support Connect IED quantity ≤60pcs(4xRS485,Max 240 Slave device)
      USB Port (Standard) Port No. 1 Port
      Port Type USB2.0
      TF Part (Standard) Port No. 1 Port
      Port Type Standard 8G (Max.32GB) Micro-SD TF card,
      Ethernet Port (Standard) Port No. 2 Ports
      Port Type 10/100M
      Wireless Communication Port xGate6-2ZL xGate6-4CL *TDD-LTE B38/B39/B40/B41* *FDD-LTE B1/B3/B8 *TD-SCDMA B34/B39 *UMTS/HSDPA/HSPA+B1/B8 *GSM/GPRE/EDGE900/1800 MHz *1 SIM Port,SIM card (Dimension 15mmX25mm)
      Al Port No./Type 2 Ports(optional)/DC420mA
      DI Port No./Type 4 Ports(optional )/Dry Contact
      DO Port No./Type 1 Port (optional)/AC220V/5A DC30V/5A
      Power Supply Input DC 18~36V/AC8S~265V or DC 100~300V (Optional)
      Consumption ＜5W
      Hardware CPU ARM cortex-A8 800MHz
      Memory DDR3 512MB
      Flash Nand flash 512MB
      MTBF >=50,000 hours
      Structure Frame 1.3 inch OLED display
      3 LED Light indicate Run,Fault & Alarm
      Installation DIN Rail Mounting
      Size 90*94*68mm
      Environment Working Temperature -15℃ ~+55℃
      Storage -25℃ ~+70℃,5~95%@non-condensing
      Oscillatory waves immunity test   IEC61000-4-12:1995,Level3
      Electrostatic discharge immunity test IEC61000-4-2:2001,Level 3
      Radiated radio-frequency electromagnetic field immunity(RFEMS) IEC61000-4-3:1998,Level 4
      Testing and measurement techniques - Electrical fast transient/burst  immunity test IEC61000-4-4:1998,Level 3
      Surge immunity test IEC61000-4-5:2005,Level 3
      Radio frequency interference immunity IEC61000-4-6:1998,Level 3
      Power frequency magnetic field immunity test IEC61000-4-6:2001,Level 3
      Electromagnetic emission limits IEC60255-25:2000,Pass
      Power frequency immunity IEC61000-4-8:2001,A
      Notice:Customer need to double check with local operator to see if the GPRS frequency selection is support or not.
