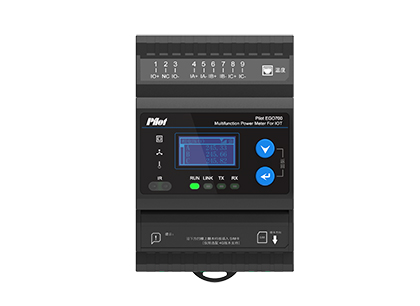

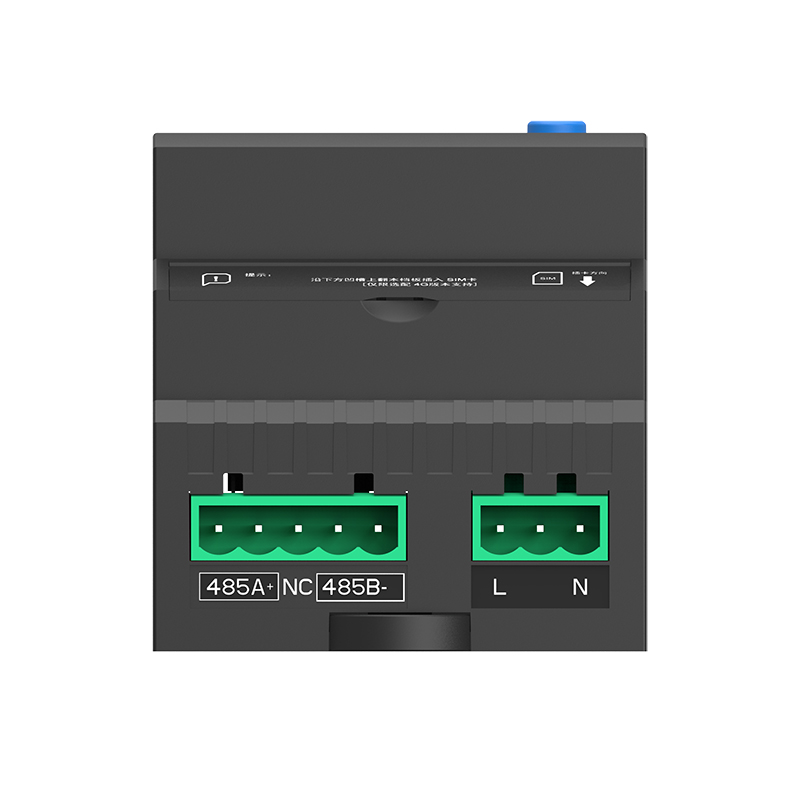

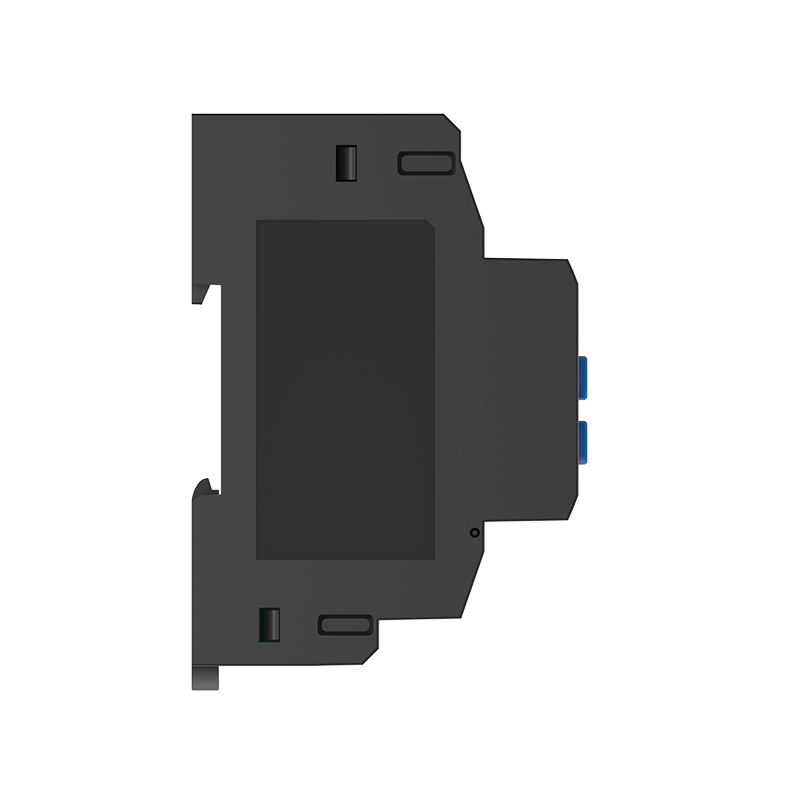

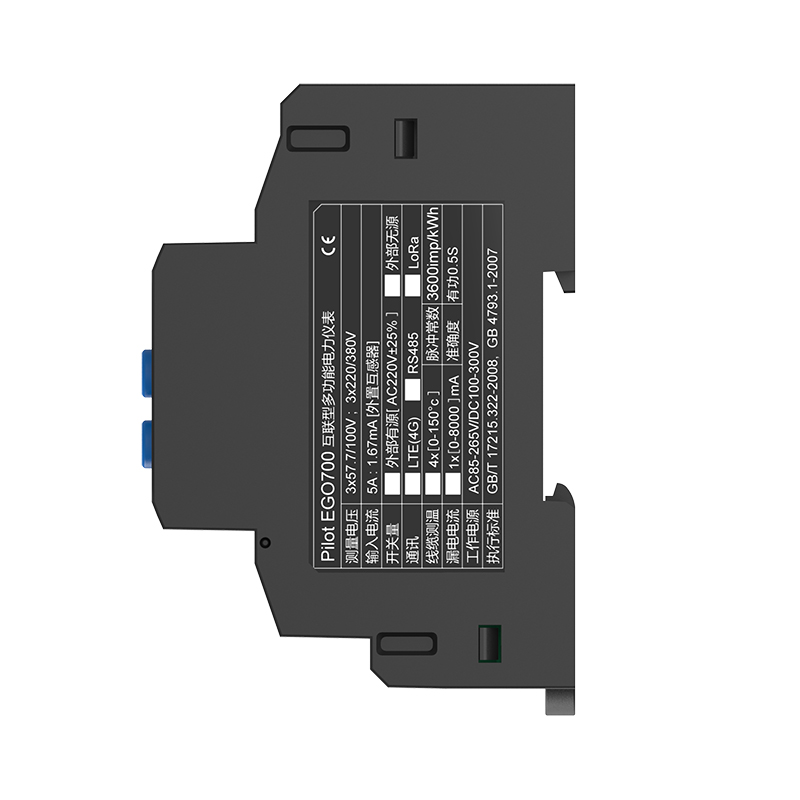

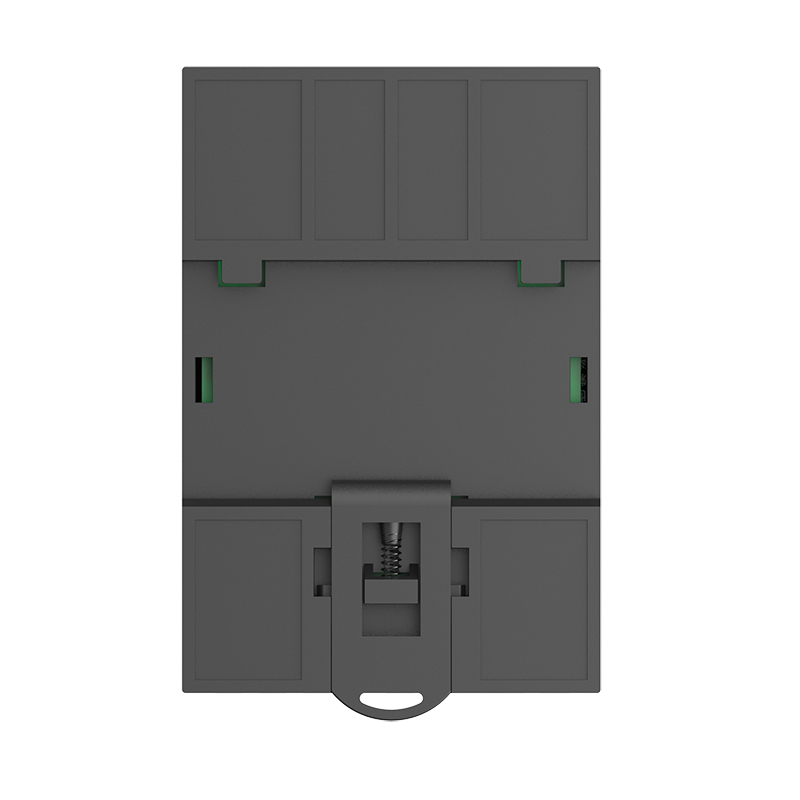

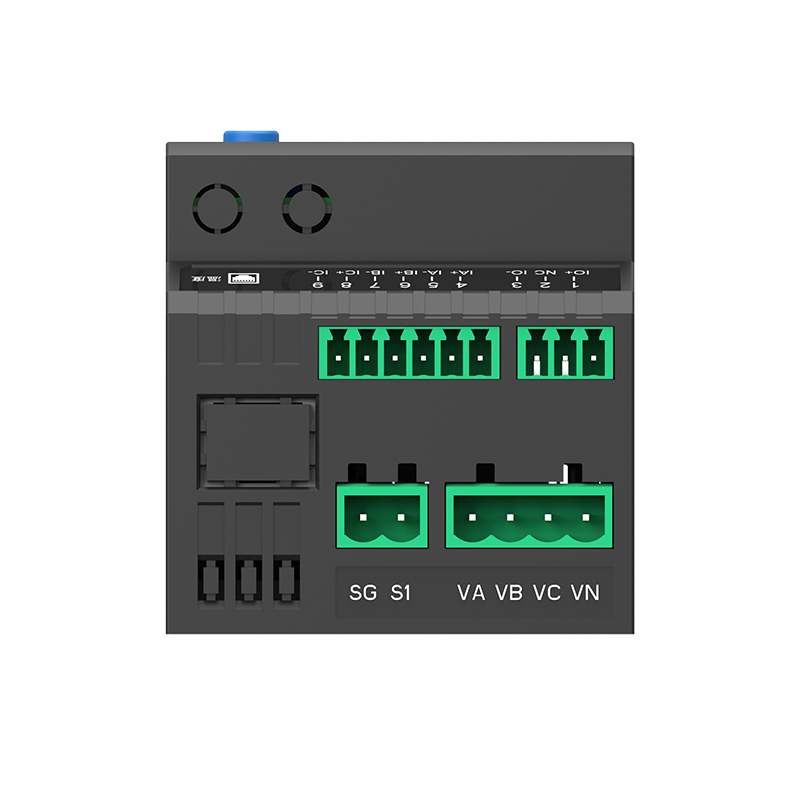

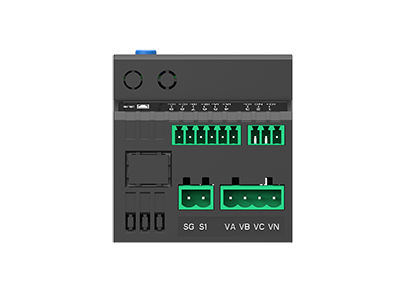

AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management

AC Energy Meter

AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management
AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management

AC Din Rail-Mounted Three Phase IoT Multifunction Power Meter EGO700 with 4G LoRa Wireless Communication for Power Distribution Management

1. Combine Measuring and Electricity Monitoring Into One

.Full Parameter Measuring and Power Quality Monitoring

.Measure and alam for residual current and cable temperature


2. Reliable Data Transfer

.7 days Data Cache 8 Re-transmit

.10 sec. keep working to posting POWER-OFF alarm

.1 sec. Real-time data upload


3. Multiple Communication Protocol

.4GILORa/RS485


4. Remote Support and Engineering Simplification

.P2P remote configuration & free maintenance

.Phase-sequence auto adjustment

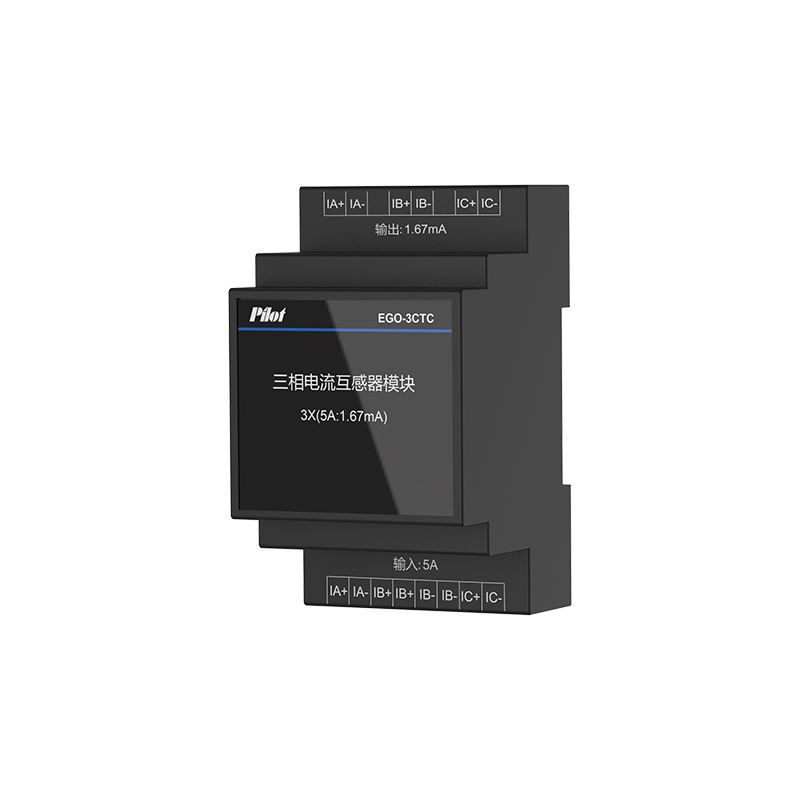

.Split core CT for easy installation

      Main Documents

      PILOT EGO700 Installation & Operation Manual PILOT EGO700 IoT Multifunction Power Meter
      Contact us

      Compatible Software

      PiEMS System1vwd

      Smart PiEMS System

      Product Introduction

      e4w9a
      • EGO700 Multi Function Power Meter For IOT is mainly applicable to the distribution cabinet and switch cabinet in the high and low-voltage distribution system lower than AC 650kV (phase voltage). Combined with RS485 port, and Modbus-RTU communication protocol, it makes easy to integrate electrical distribution measurements into Smart PiDMS distribution management system.
        EGO700 fully meets the relevant technical requirements of GB / T 17215.322-2008 for active power level 0.5s and GB / T 17215.323-2008 for reactive power level 2.
      e1sld
      • EGO700 Internet multi-function acquisition terminal adopts dual-core architecture of high-performance microprocessor and metering core. The function include independent operation of metering and logic control, high metering accuracy, stable work, providing high-precision full power measurement, demand calculation, harmonics Analyze, set value exceeding limit, residual current and cable temperature measurement, data freezing function.

      e3dfq

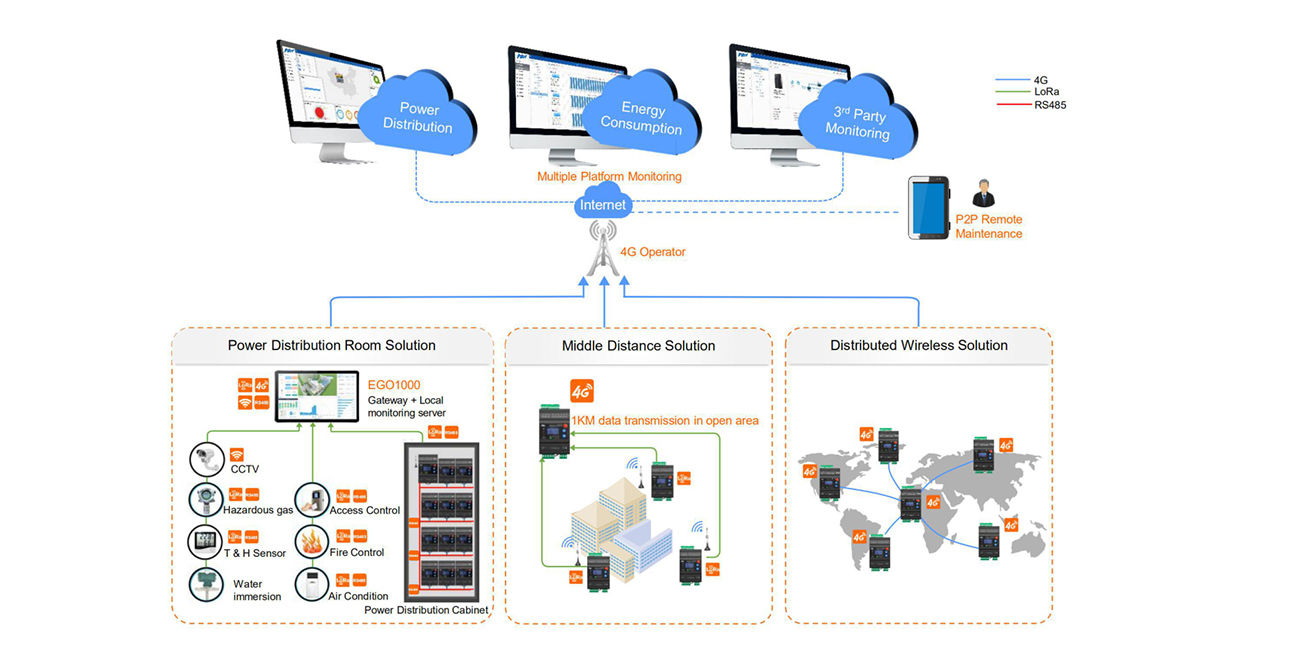

      • EGO700 adopts the technology of IoT communication and P2P. The design of split core CT supports power-keeping installation which greatly reduces the comprehensive cost of installation, debugging and maintenance. The features of built-in large-capacity cache and resume break-point that ensures system-side data integrity. It is suitable for projects such as energy management, electrical safety, and power Internet of Things.

      imgerqh5
      e1sld

        EGO700 provides the main functions as below

      • 1.Full power measurement: three phase voltage, current, active power, reactive power, apparent power, power factor, frequency, voltage and current angle, cable temperature and residual current
        2.Energy metering: bidirectional electric energy, historical electric energy 3.Demand function: real time demand, daily maximum demand and monthly maximum demand
        4.Power quality: 63th harmonic analysis, voltage and current content, THD, imbalance
        5 .Alarm:over voltage, under voltage, over-current, under current, phase loss, frequency too high, frequency too low, power too high, switch value 1 off, etc

      e6plj
      • 6.Data record: historical electric energy for lately 10 years, 12 months and 31 days
        7.Event record of electric parameter maximum value: event record with time scale and operation record
        8.Communication: 1-way RS485 communication is provided as standard, 4G / Lora can be selected for infrared communication, MODBUS, HTTP, Mqtt and other communications are supported, and MODBUS custom register is supported
        9.Switch value input: one active switch input is provided as standard
        10.Temperature of cable: 4-way 0-150 ℃ cable temperature measurement 11.Residual current: 1-way 0-8000ma residual current measurement

      Specification

      Power Supply AC 85～265V/ DC 100～300V LoRa 470-510Mhz,1KM open area
      Rated Current (Optional) 1.67mA 5A/1.67mA 100A/33.3mA RS485 4800-38400bps
      Break-point transfer 7 days data cache (1 sampling point/5min.)
      Rated Voltage 3x57.7/100V,3x220/380V Environment Operation Temperature:-25℃～+70℃ Storage Temperature:-40C℃～+85℃ Operation Humidity:5%～95%Non-condensing
      Digital Input Wet contact,external power supply: 220V,when<60V,open,when> 140V,closed,Max.Input:300V Or Dry contact:internal supply 24Vdc
      EMC Standard

      Electrostatic Discharge Immunity Test RF Electromagnetic Field Immunity testing

      		 IEC61000-4-2:2001 IEC61000-4-3:2002
      Connection Mode 3P4W,3P3W
      LTE Wireless Communication LTE-FDD B1/B3/B5/B8 Electrical fast transient immunity test Surge immunity test Injected Current Immunity Test Electromagnetic emission limit IEC61000-4-4:2006 IEC61000-4-5.2005 IEC61000-4-6.2006 CISPR22:2006
      LTE-FDD B34/B38/B39/B40/B41
      Residual Current 1x0-8000mA Voltage sag and short-time interruption Immunity testing Passed
      Cable Temperature 4x0-150℃
      Parameter Measurement Range Accuracy
      Voltage Phase Voltage:10V～400V Line Voltage:10V～500V 0.2%
      Primary Voltage Max.1000kV -
      Current 5mA-6.5A 0.2%
      Primary Current Max.100000A -
      Frequency 40-70Hz 0.1%
      Active Energy 0-99999999.9 kWh 0.5%
      Reactive Energy 0-99099999.9 kWh 2%
      Active Power Single Phase:0～±9999M/Mvar Total:O～±9999MWMvar 0.5%
      Reactive Power 1.0%
      Harmonic 0%～100% Class B
      6579a8fycx6579a8f2el
