Pilot Business AC EV Charger PEVC2201 from 3kW to 22kW

PEVC2201 is a basic wall-mount single/three-phase AC charger.It's easy to install, stable in performance, and provides complete protection function. The 4.3 inch LCD display can show the charging status, user-friendly. It supports 4G/ Ethernet/ WiFi communication

Highlights：

Connector: Type 2, Type 1

Output Power: 7kW, 11kW or 22 kW

Communication: 4G/ Ethernet/ WiFi

Precision: accuracy Class 1 metering

Protection: IP55 waterproof and dustproof

Start Mode: Charging via QR code scanning, RFID card

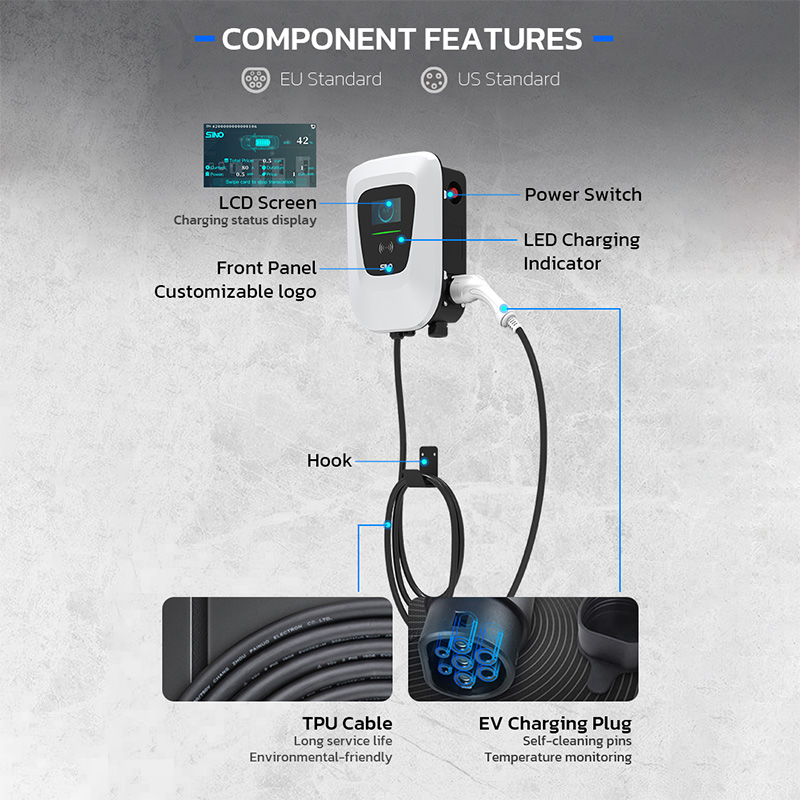

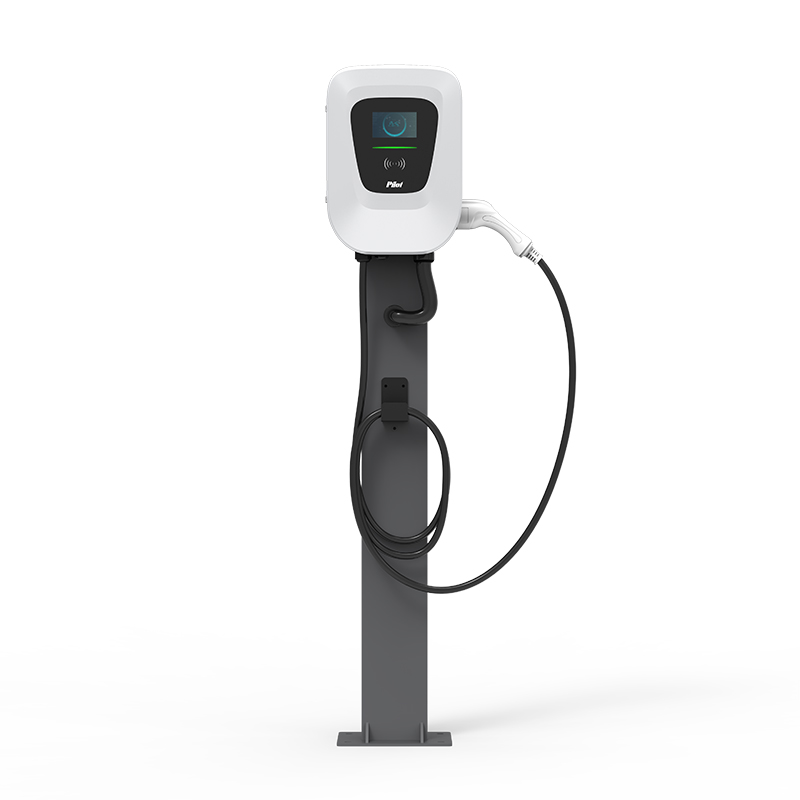

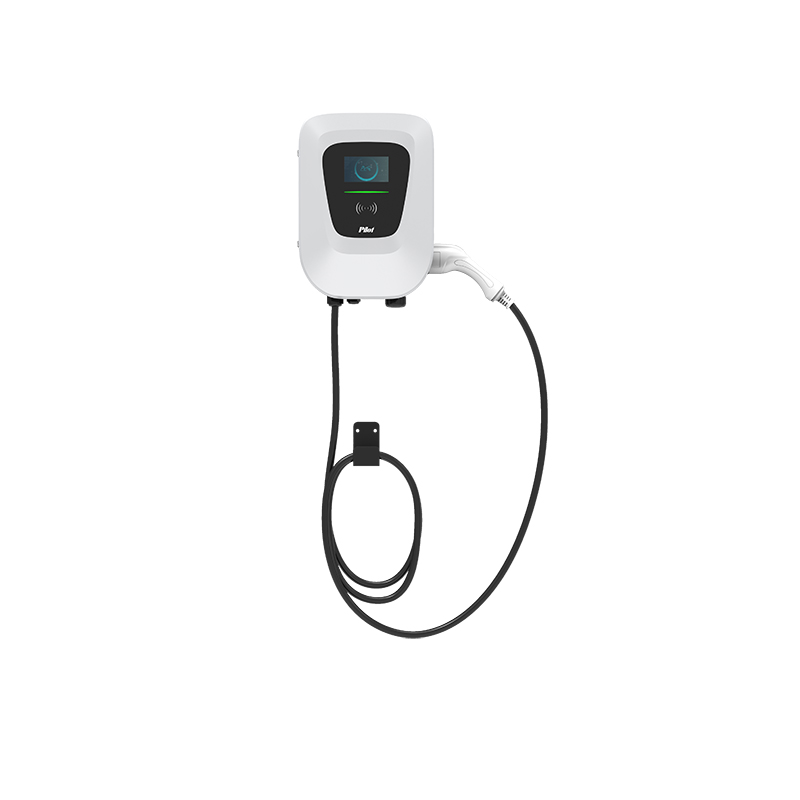

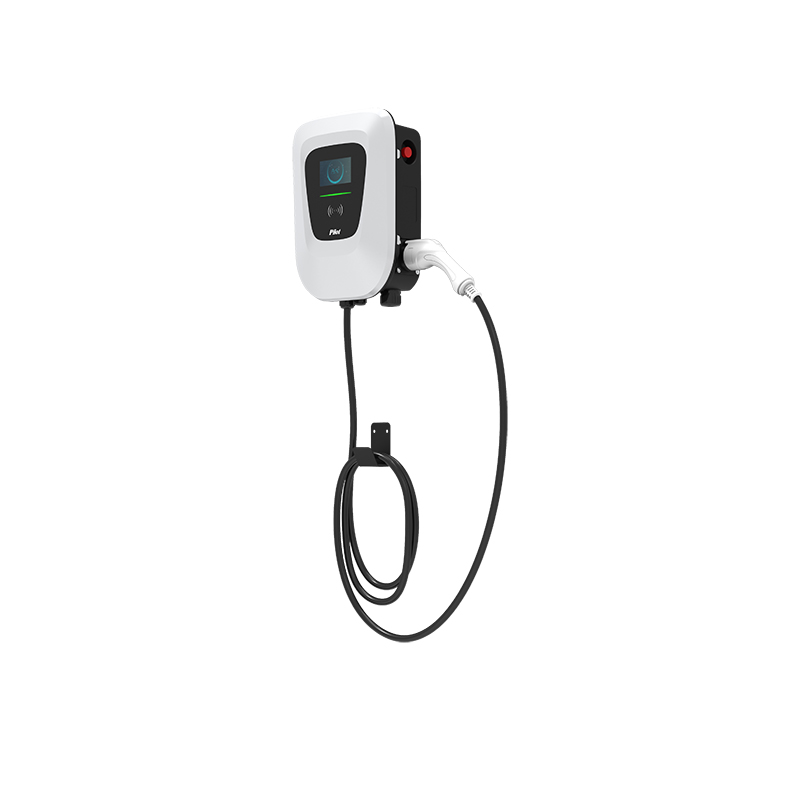

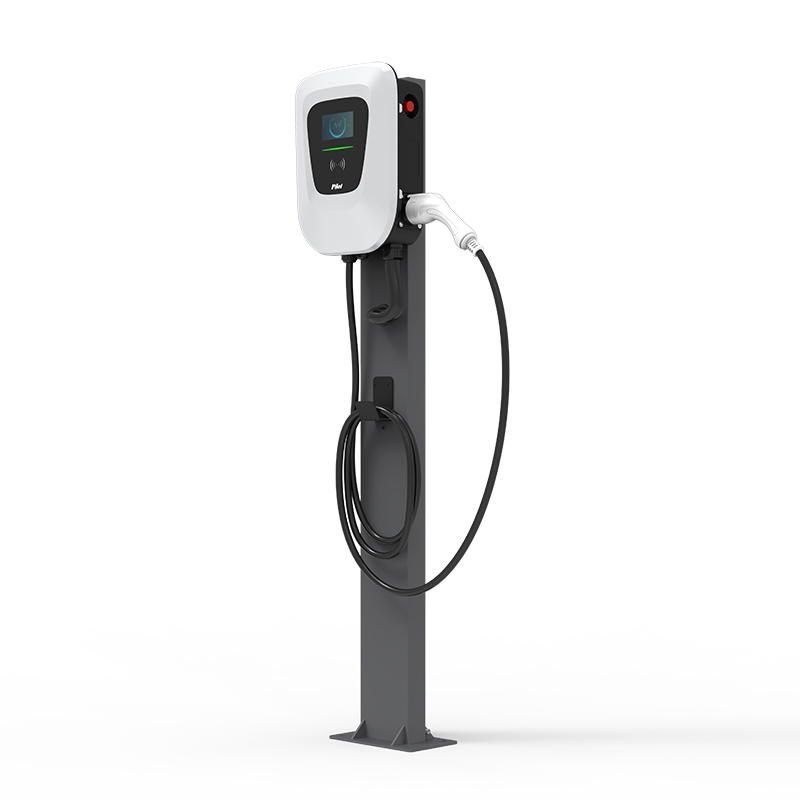

Mounting：Wall-mount/Pole-mount

Charging Protocol：OCPP-1.6JSON

Certificates：CB, CE, TUV

Main Documents

PEVC2201E maintenance/User PEVC2201E maintenance/User

Compatible with Most Electric Vehicles

Customizing all types of charging connectors makes it highly flexible and compatible with most electric vehicles, including Tesla,Volkswagen, Stellantis, Mercedes-Benz, BMW, Volvo, MG, BYD, and etc.

man-charging-his-electric-car-charge-station-using-smartphone6nm

Multi-directional protection

PEVC2201 series has an IP55 patented design case for outdoor and indoor use.

Optional Load Balancing Function

This function guarantees the safety of electricity and prevents overload, allowing for efficient and secure charging of your electric vehicle.

man-using-digital-tablet-while-charging-electric-carxs20

User-Friendly Operation

Pilot EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
View charging data and status;
Set up various charging configurations, charging current, monitoring mode, etc;
Scheduled charging;
Firmware update；

cases

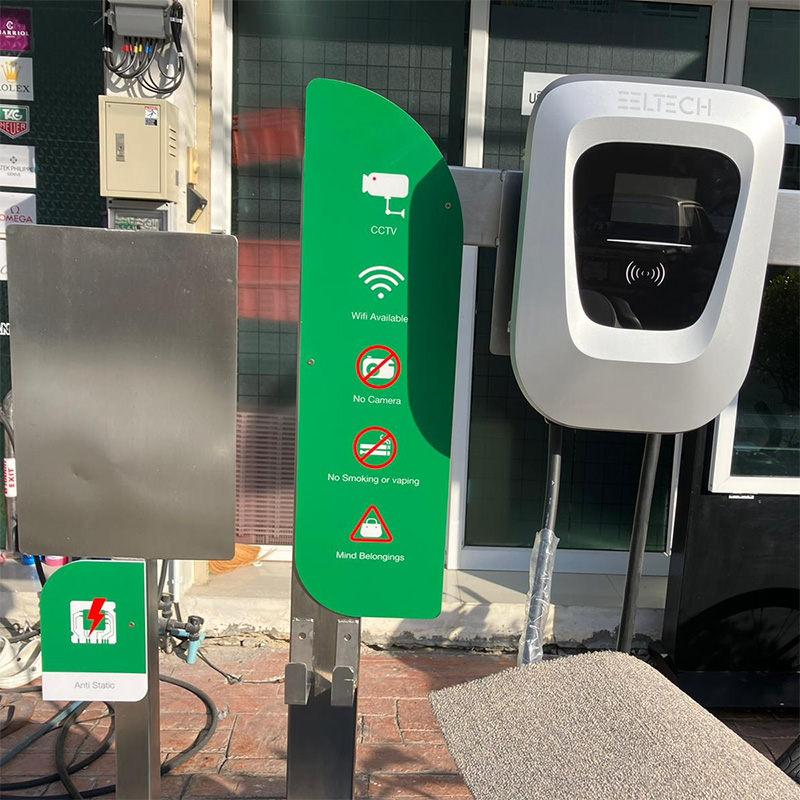

Project: AC EV Charger PEVC2201E/22kW/32A/Type 2/WiFi+4G+Bluetooth,4.3 Inch LCD

Application：EV Dealer Workshop

Location: Thailand

SPECIFICATION

Parameter type	Description	PEVC2201
Input parameters	Power Supply	1P+N+PE	3P+N+PE
	Rated voltage	230VAC±10%	400VAC±20%
	Frequency	50/ 60Hz
Output parameters	Number of output ports	1
	Output voltage	230V	400VAC±20%
	Output current	16A/ 32A
	Output power	3 kW/ 7 kW	11 kW/ 22 kW
Protection functions	Overvoltage/Undervoltage protection	√
	Over current protection	√
	Short circuit protection	√
	Lightning protection	√
	Emergency stop protection	√
	Leakage protection	RCD Type A + 6mA DC
Basic parameters	Electric energy measurement	Accuracy Class 1 energy meter
	Display mode	4.3 inch LCD
	Plug cable length	5m
	Communication	Ethernet/ WiFi/ 4G LTE
	Protocol	OCPP-1.6 (JSON)
	Insulation resistance	1000VDC≥10MΩ
	Dielectric Strength	AC2500≤10mA (Input / output to ground)
	Connector type (IEC 62196-2)	Type 2
	Standards	IEC61851-1, IEC62196-1/2
Environmental Parameters	Operating temperature	-30℃~60℃
	Storage temperature	–40°C ~ 80°C
	Altitude	≤2000m
	Humidity	≤95% ，non-condensing
EMC performance	Electrostatic discharge immunity	Level 3
	Radio frequency electromagnetic field radiation immunity	Level 3
	Electrical fast transient burst immunity	Level 4
	Surge impact immunity	Level 3
Structural parameters	Shell color	Metallic grey
	Shell material	(PC+ABS)-Blend
	Installation method	Wall-mount/ Pole-mount
	Dimensions(WHD)	300mm420mm153.8mm
	Protection level	IP55
