DC EV Charger

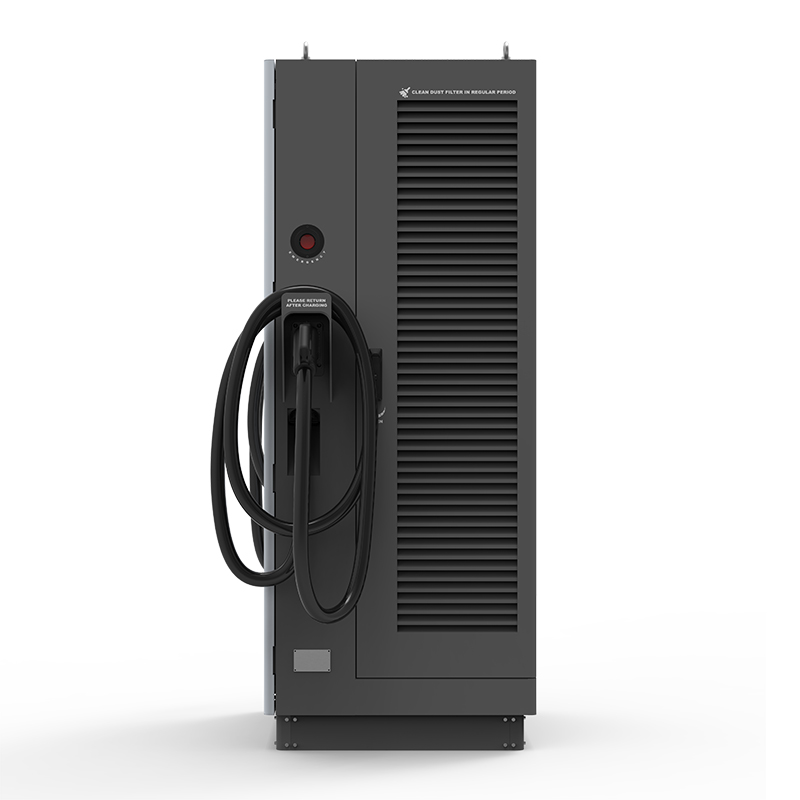

Pilot Business Level 3 DC EV Charger PEVC3108 120kW-240kW
Main Documents
Compatibility by Brand
-
With new electric car brands emerging all the time, it’s essential that modern charging stations are compatible with a wide range of models if electric cars are going to be the future.Pilot’s DC electric vehicle chargers support widely used charger connectors, including CCS1, CCS2 and CHAdeMO, from Tesla to Kia almost all electric car brands compatible with Pilot Charging Stations
Multi-directional Protection
- Multiple protection mechanisms, IP54 rating, dustproof and waterproof.
Smart Connectivity
- Seamless integration with smart systems for efficient communication and control. Optional RFID/App etc. for user identification and management.
Reliable software to boost your charging business
- The Sino’s Charging Management System supports charging fault cloud backup protection mechanism and orderly charging management algorithm, empowers you to get efficient monitoring and rich insights so you can manage your EV charging business with ease.
Customized for More Power
-

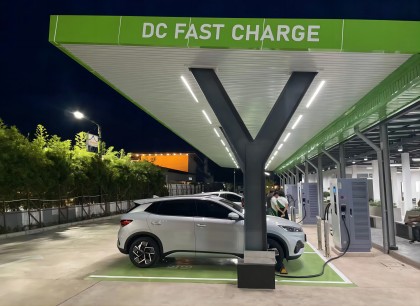

PEVC3108 series offer flexible configurations, software and standard connectors that can be used in any scenario such as EV bus stations, highway service stations, parking garages, commercial fleet operators, EV infrastructure operators and service providers, and EV dealer workshops.
- Additionally,Pilot’s charging stations can be customized to deliver up from 120kW to 240 kW to two electric vehicles simultaneously, enabling high-power charging with limited infrastructure costs.
SPECIFICATION
|
Parameter type |
Description |
PEVC3106 Series |
|
Input |
Power supply |
3P+N+PE |
|
Rated voltage |
400VAC±10% |
|
|
Frequency |
50Hz or 60Hz |
|
|
Max.THDi |
≤5% |
|
|
Efficiency |
≥95% |
|
|
Power factor |
≥0.98 |
|
|
Output |
Connector type |
CCS2 or CCS2+CCS2 or CCS2+JAP |
|
Voltage |
150-1000VDC |
|
|
DC current |
200A |
|
|
Power rating |
60kW-240kW |
|
|
Voltage accuracy |
≤0.5% |
|
|
Current accuracy |
≤±1% |
|
|
General |
HMI |
7-inch touchable screen |
|
Environmental |
Payment method |
RFID Card, APP |
|
Cable length |
5M Ethernet |
|
|
Communication protocol |
OCPP-1.6J |
|
|
Operating noise level |
≤60dB |
|
|
Ingress rating |
IP54 |
|
|
IK rating |
IK10 |
|
|
Power meter |
Accuracy class 1.0 energy meter |
|
|
Enclosure |
Galvanized steel, surface spayed with anti-corrosion paint |
|
|
Place of installation |
Indoor/Outdoor |
|
|
Product dimension(W*D*H) |
750*750*1900mm |
|
|
Package dimension(W*D*H) |
1000*920*2050mm |
|
|
Protection |
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection, Over Temperature, Ground Protection |
|
|
Certification Standard |
EN/IEC61851-1,EN/IEC61851-23,EN/IEC61851-24,IEC62196-1,IEC62196-3 |
|
|
Operating Temperature |
-30℃ -+50℃ |
|
|
Storage Temperature |
-40℃-+75℃ |
|
|
Max.installation height |
≤2000m |
|
|
Operating humidity |
5%-95% RH |
