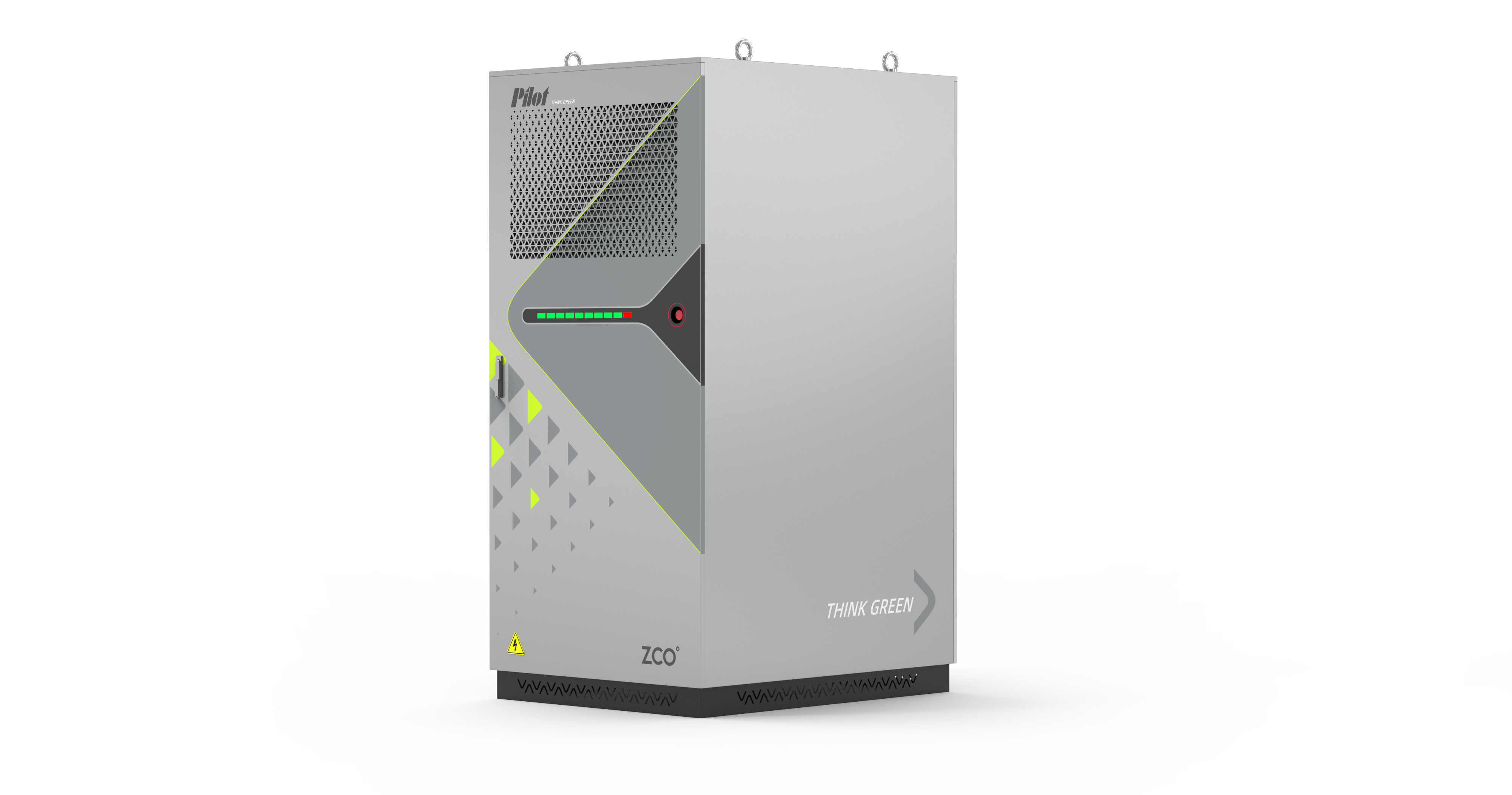

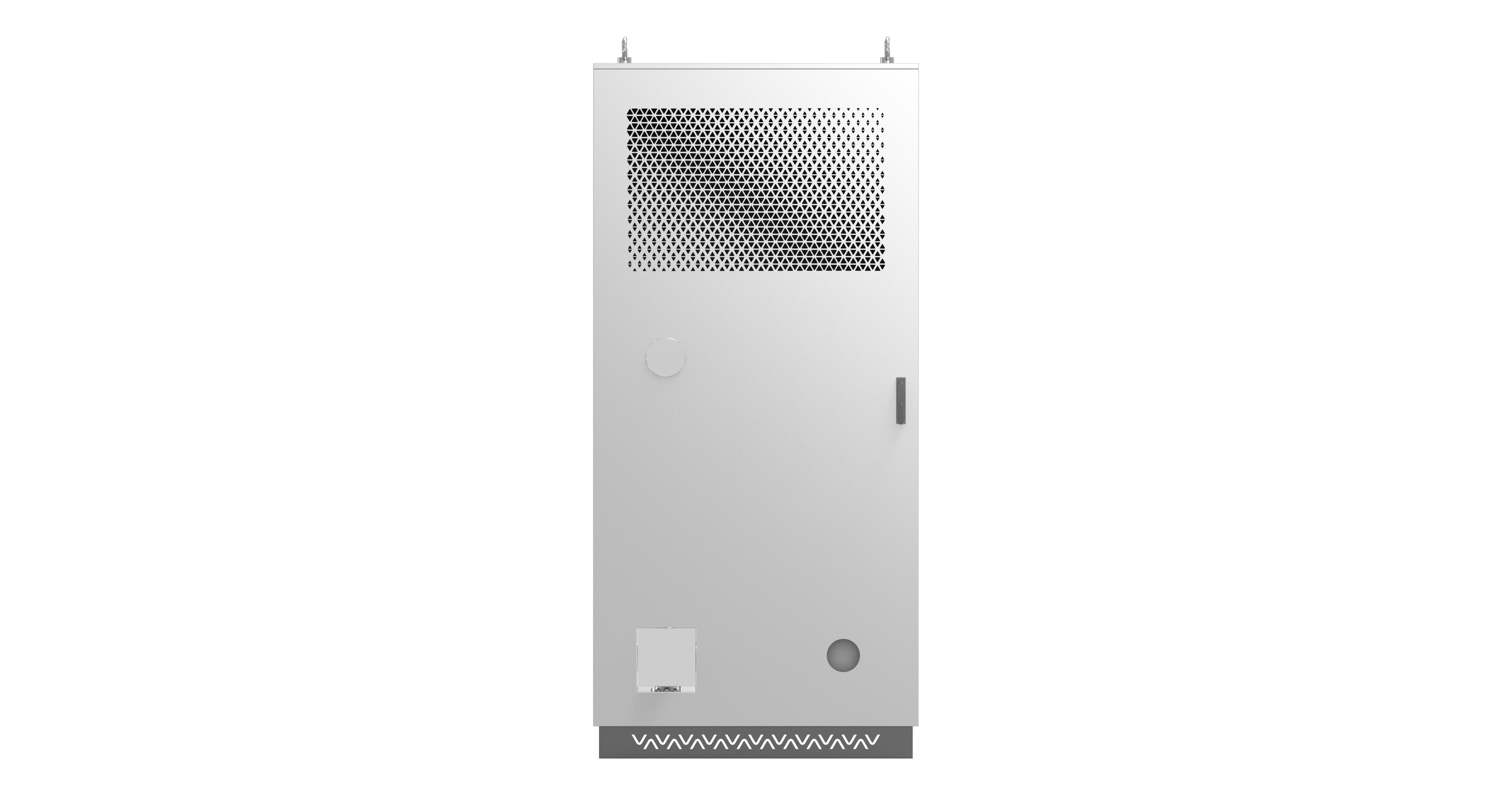

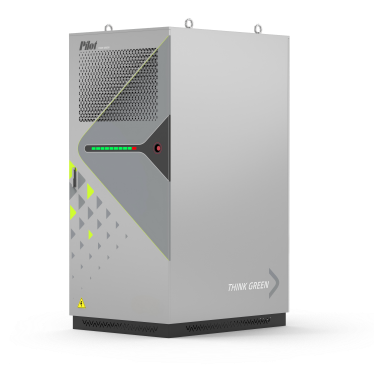

Pilot’s Commercial and Industrial (C&I) Battery Energy Storage System PL-EL-100/209 & PL-EL-125/261
Main Documents
- Save construction cost: In remote areas, off-grid energy supply systems are often more cost-effective than connecting to the grid.
- Ensure reliable power supply: The "wind + solar + diesel" hybrid architecture, combined with energy storage system, ensures power supply continuity and improves power quality.
- On-site consumption of wind and solar energy: Utilize the energy storage system to fully absorb wind and solar resources, maximizing energy savings and emission reductions.
- Flexible deployment and expansion: Highly integrated cabinet design allows for quick deployment, reduces on-site debugging and installation workload, and allows for flexible expansion.
- Applications：Best choose for Oilfield, Mines, Island, Remote Communities, and so on.
Wind-Solar-Diesel-BESS All-in-One Cabinet
- Grid-Connected Operation:Demand response, peak shaving, dynamic capacity expansion, demand management, anti-backflow.
- Off-Grid Operation:Islanding detection, on/off-grid switching, frequency and voltage emergency response, black start.
- Microgrid EMS: Load Forecasting, Generation Forecasting,Economic optimization,Carbon emission management,AGC/AVC,Demand response,Islanding detection,Black-start.
- Industrial Applications Sectors: Commercial building, Healthcare, Manufacturing, Data center, and so on.
Hierarchical Microgrid Control System
- PV: Select PV parking shed, rooftop PV and BIPV according to the location.
- BESS: Choose different capacity according to the site needs.
- Charging Station:Configure charging piles with different powers and types according to the charging requirements.
Solar-BESS-Charging System
Specification
| Parameters/ Model | PL-EL-100/209 | PL-EL-125/261 |
| Battery Parameter | ||
| Cell Type | LiFePO4 - 314Ah | |
| Grouping | 1P52S*4S | 1P52S*5S |
| System Capacity | 209 kWh | 261 kWh |
| AC side On-grid parameter | ||
| Grid type | 3P4W | |
| Rated power | 100kW | 125kW |
| Rated voltage | AC 400V | |
| Grid voltage range | ±15% | |
| Freq. range | 50 /60 （+/-2.5Hz） | |
| Rated current | 160A | 180A |
| Harmonics | ≤3% (@Rated Power） | |
| AC side Off-grid parameters | ||
| Load Connection | 3P4W | |
| Rated Output Power | 100kW | 125kW |
| Freq. range | 50/60 (±0.2)Hz | |
| Rated voltage | AC 400V | |
| General Parameters | ||
| Dimensions (W*H*D) | 1100mm*2350mm*1400mm | |
| Weight | 2.33 ton | 2.65 ton |
| IP Class | IP54 （battery PACK IP65） | |
| Cooling Method | Liquid cooling | |
| Firefighting | Aerosol+Perfluorohexanone PACK-level fire protection + active early warning | |
| Anti-corrosion | C3 | |
| Relative humidity | 0-95%（no condensing） | |
| Operating temp.* | -20℃~50℃ | |
| Operating altitude** | ≤2000m | |
| Noise emission | ≤75dB | |
| Communication interface | RS485, Ethernet | |
| Protocol | Modbus RTU, Modbus TCP/IP | |
| Warranty | Battery PACK for 5years，2-year performance warranty | |
*The system will be derated when the ambient temperature exceeds 45℃.
** The system will be derated when the altitude is between 2000m and 3000m.
** The system will be derated when the altitude is between 2000m and 3000m.
01
