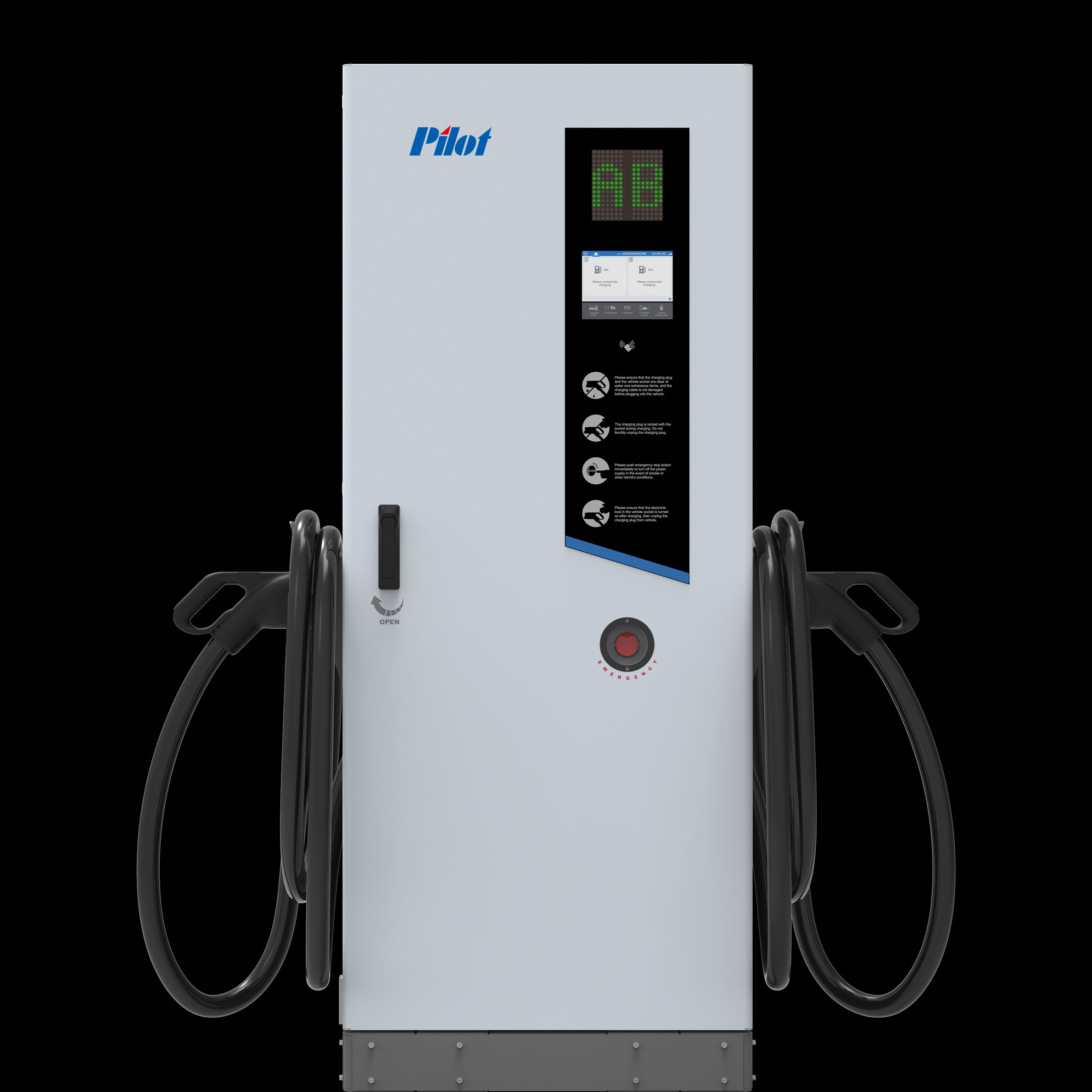

DC EV Charger
Compatible Charger Connectors
- Supports widely used charger connectors, including CCS1, CCS2 and CHAdeMO.
Multi-directional Protection
- Multiple protection mechanisms, IP54 rating, dustproof and waterproof.
Smart Connectivity
- Seamless integration with smart systems for efficient communication and control. Optional RFID/App etc. for user identification and management.

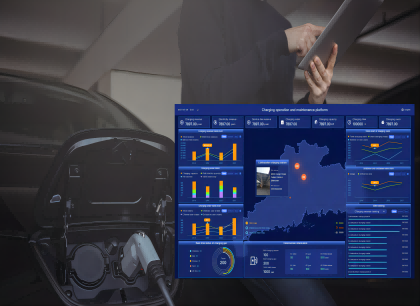

Reliable software to boost your charging business
- The Sino’s Charging Management System supports charging fault cloud backup protection mechanism and orderly charging management algorithm, empowers you to get efficient monitoring and rich insights so you can manage your EV charging business with ease.

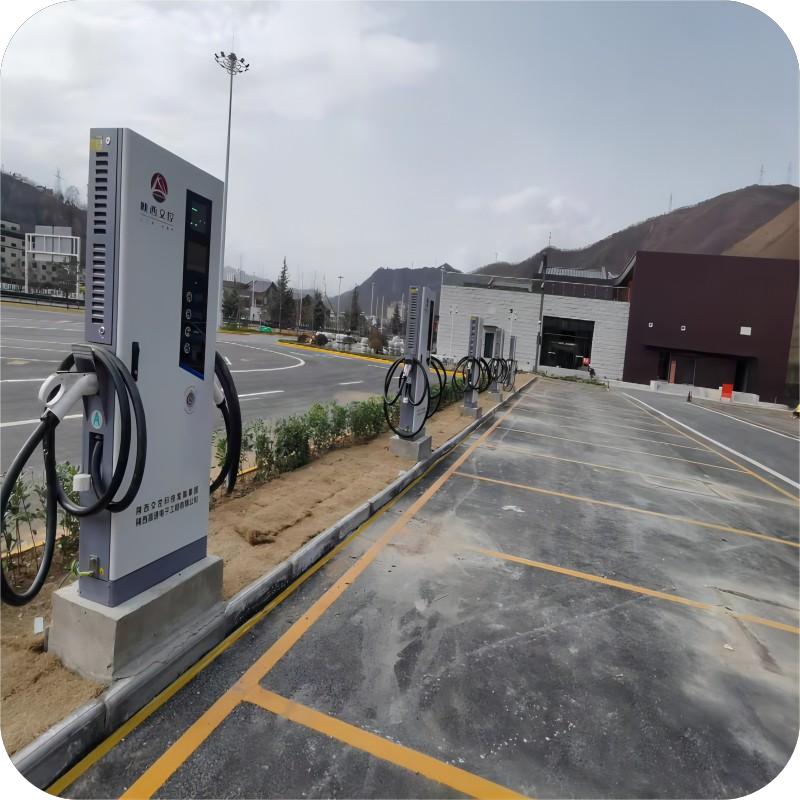

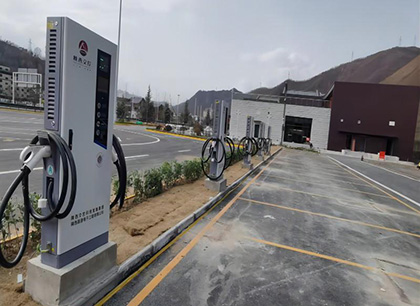

Flexible for any location and any business
- PEVC3106 series offer flexible configurations, software and standard connectors that can be used in any scenario and for any type of vehicle. Additionally, its small footprint allows for fast charging in tight spaces, such as EV bus stations, highway service stations, parking garages, commercial fleet operators, EV infrastructure operators and service providers, and EV dealer workshops.
SPECIFICATION
|
Parameter type Input |
Description |
PEVC3106 Series |
|
Power supply |
3P+N+PE |
|
|
Rated voltage |
400VAC±10% |
|
|
Frequency |
50Hz or 60Hz |
|
|
Max.THDi |
≤5% |
|
|
Efficiency |
≥95% |
|
|
Power factor |
≥0.98 |
|
|
Output |
Connector type |
CCS Combo1/CCS Combo2 |
|
Voltage |
150-1000VDC |
|
|
DC current |
200A |
|
|
Power rating |
60kW |
|
|
Voltage accuracy |
≤0.5% |
|
|
Current accuracy |
≤±1% |
|
|
General |
HMI |
7-inch touchable screen ISO/IEC14443 RFID Card Reader |
|
Payment method |
RFID Card, APP |
|
|
Cable length |
5M Ethernet,Optional:Cellular/WiFi/Bluetooth |
|
|
Communication protocol |
OCPP-1.6J |
|
|
Operating noise level |
≤75dB DC Meter With 1% Accuracy |
|
|
Ingress rating |
IP54 Yes |
|
|
IK rating |
IK10 Yes |
|
|
Power meter |
Accuracy class 1.0 energy meter |
|
|
Enclosure |
Galvanized steel, surface spayed with anti-corrosion paint |
|
|
Place of installation |
Indoor/Outdoor |
|
|
Product dimension(W*D*H) |
700*240*1750mm |
|
|
Package dimension(W*D*H) |
1100*750*1890mm |
|
|
Protection |
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection, Over Temperature, Ground Protection |
|
|
Certification Standard |
EN/IEC61851-1,EN/IEC61851-23,EN/IEC61851-24,IEC62196-1,IEC62196-3 |
|
|
Environmental |
Operating Temperature |
-30℃ -+50℃ |
|
Storage Temperature |
-40℃-+75℃ |
|
|
Max.installation height |
≤2000m |
|
|
Operating humidity |
5%-95% RH |
